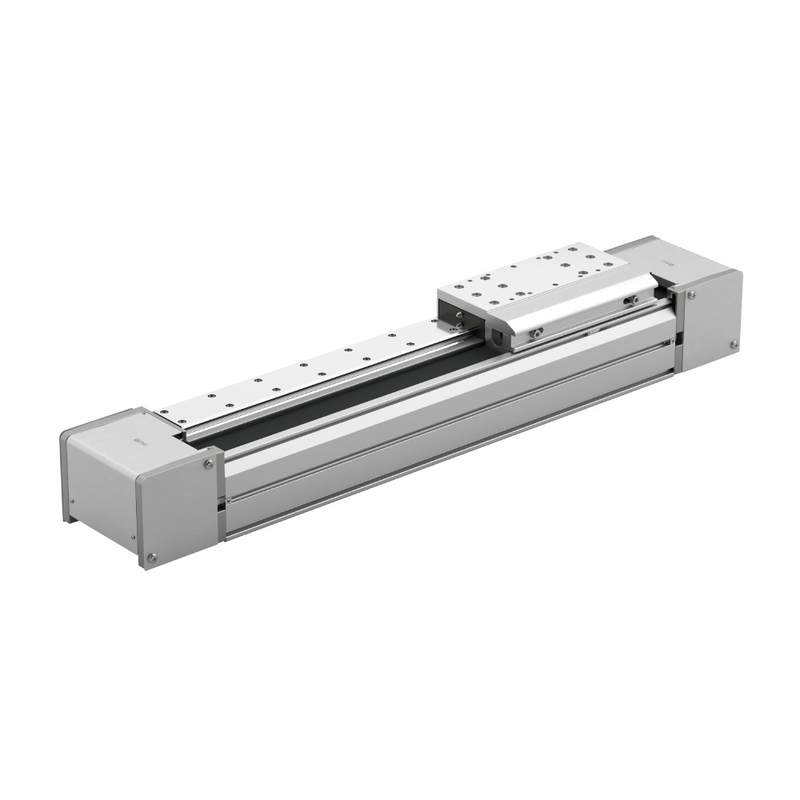

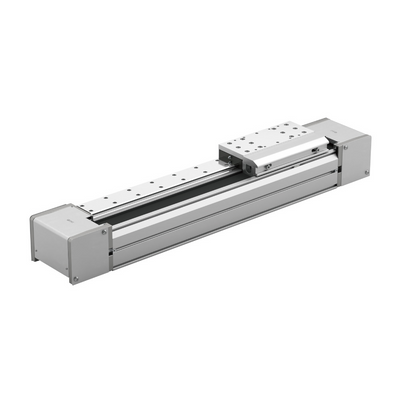

SMC LEMC32UT500 (LEMC32UT-500) - Electric Actuator / Low Profile Slider Type, Cam Follower Guide Type, 500 mm Stroke, 48 mm Lead

SMC LEMC32UT500 Electric Actuator / Low Profile Slider Type, Cam Follower Guide Type — cam follower guide type with bottom motor mounting, 48 mm lead and 500 mm stroke. Low profile slider type electric actuator with cam follower guide, step motor (servo 24 VDC), size 32, motor mounting position U bottom mounting, lead T = 48 mm, stroke 500 mm, without lock, without cable and without controller, screw mounting, low profile and low centre of gravity, motor mounting position selectable above or below and right or left, solid state auto switch mountable for limit and intermediate signal confirmation.

MPN: LEMC32UT-500 · SKU: LEMC32UT500

LEMC32UT-500 Applications

The SMC LEMC32UT500 is used in packaging, electronics and general assembly machinery where a long horizontal transfer must fit under a low ceiling or inside a shallow frame. It is suited for high-speed shuttle transfer over 500 mm, for combining with customer-selected external guides, and for replacing rodless pneumatic cylinders where programmable multi-point stopping is needed. The cam follower guide gives smooth travel with easy maintenance, the 48 mm lead favours speed over thrust, and bottom motor mounting keeps the overall height and centre of gravity low. Note: manufacture discontinued since May 2025, replaced by the LEMC-JXC series.

LEMC32UT-500 Specifications
