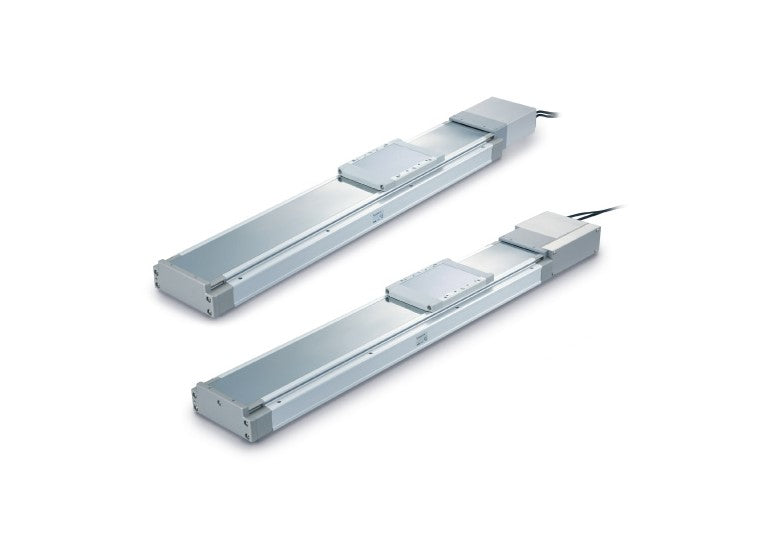

SMC LEFS25B350BR8CP17 (LEFS25B-350B-R8CP17) - Electric Actuator / Slider Type, Ball Screw Drive, 350 mm Stroke, 6 mm Lead

SMC LEFS25B350BR8CP17 Electric Actuator / Slider Type, Ball Screw Drive — 350 mm stroke with 6 mm lead, motor lock and PROFINET communication. Slider type ball screw drive with step motor (servo 24 VDC), size 25, in-line motor mounting, lead B = 6 mm, stroke 350 mm, motor option B with lock, robotic cable 8 m (R8), PROFINET communication protocol (CP), single axis standard specification, screw mounting, positioning repeatability ±0.02 mm, max. work load 30 kg and max. speed 1100 mm/s for LEFS25.

MPN: LEFS25B-350B-R8CP17 · SKU: LEFS25B350BR8CP17

LEFS25B-350B-R8CP17 Applications

The SMC LEFS25B350BR8CP17 is used in electronics assembly, packaging, laboratory automation and general pick-and-place machinery that needs accurate, programmable linear transfer. It is suited for horizontal and vertical transfer where the motor lock holds position on power-off, for PROFINET-networked cells controlled from a JXC series controller, and for moving jigs, cameras or grippers over a 350 mm span. The 6 mm lead trades speed for thrust and resolution, making it a good fit for heavier vertical loads, while the 8 m robotic cable suits moving cable-track installations.

LEFS25B-350B-R8CP17 Specifications
