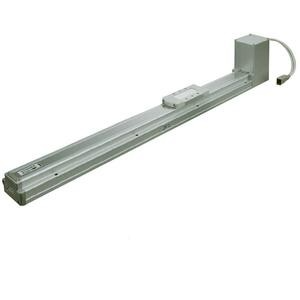

SMC LEFB32NYS600 (LEFB32NYS-600) - Electric Actuator / Slider Type, Belt Drive, Motorless Type, 600 mm Stroke, Motorless Type

SMC LEFB32NYS600 Electric Actuator / Slider Type, Belt Drive, Motorless Type — motorless size 32 with mounting type Y and 600 mm stroke. Slider type belt drive motorless actuator, size 32, top motor mounting position, motor type NY (mounting type Y), equivalent lead S = 54 mm, stroke 600 mm, positioning pin hole on Housing B bottom, standard (non made-to-order) specification, supplied without motor so a customer-selected servo motor can be fitted.

MPN: LEFB32NYS-600 · SKU: LEFB32NYS600

LEFB32NYS-600 Applications

The SMC LEFB32NYS600 is used in packaging lines, gantry and overhead transfer systems, and machine builds where long, fast horizontal strokes are needed and the integrator supplies their own servo motor. It is suited for retrofitting an existing motor and drive brand into an SMC slider, for long-travel belt-driven transfer where a ball screw would be speed-limited, and for standardising a mechanical axis across machines that use different motor suppliers. The motorless design accepts motors from Mitsubishi, YASKAWA, Panasonic, FANUC, Siemens, Rockwell, Beckhoff, Delta and others via mounting type Y.

LEFB32NYS-600 Specifications
