SMC L5040 - Foot Mounting Bracket, ø40 mm bore

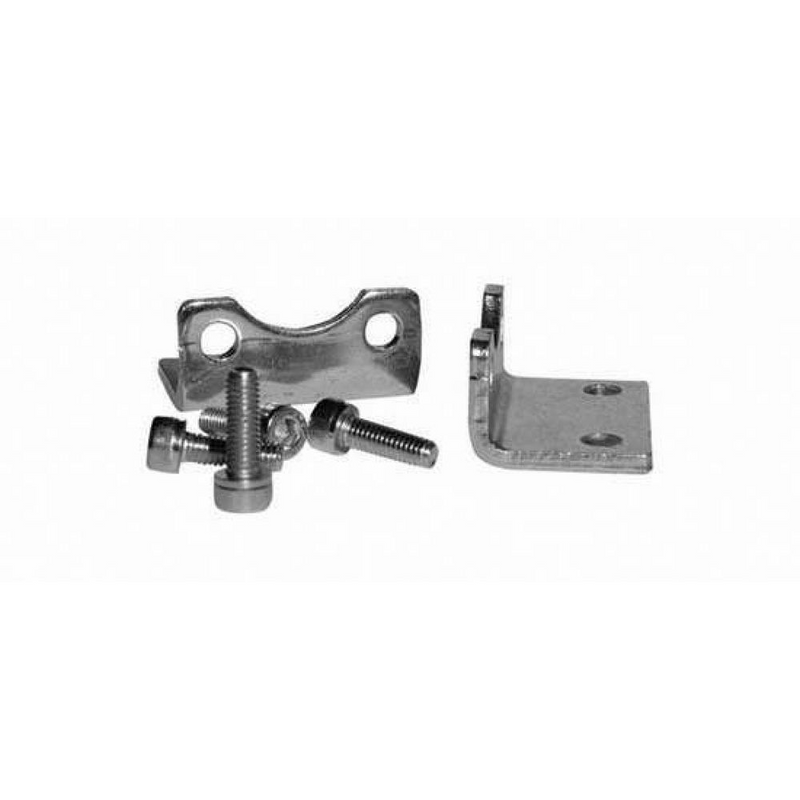

SMC L5040 Foot Mounting Bracket — Axial foot (L) bracket for C95/C96 tie-rod cylinder. SMC L-type axial foot mounting bracket for C95 / C96 (ISO) tie-rod cylinders, ø40 mm bore. Supplied as a foot-mount accessory kit for securing the cylinder to a base.

MPN / SKU: L5040

L5040 Applications

The L5040 is an axial foot (L-type) mounting bracket for SMC C95/C96 ISO tie-rod pneumatic cylinders with a 40 mm bore. It bolts to the cylinder end and provides a foot for fixing the actuator to a machine base or frame, transmitting thrust loads in axial mounting arrangements. Commonly used when integrating standard ISO cylinders into automation, conveying and machine-build applications requiring a rigid foot-mount.

L5040 Specifications
