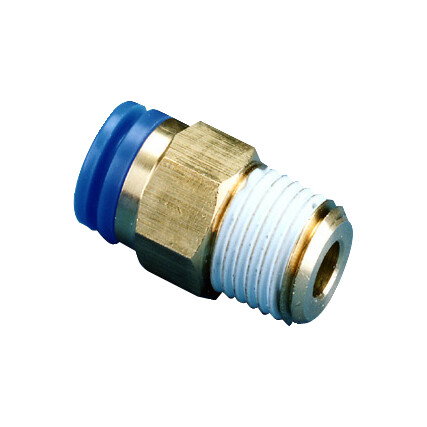

SMC KQH1003S (KQH10-03S) - One-touch Male Connector, ø10 mm tube, R3/8 male connector

SMC KQH1003S One-touch Male Connector — ø10 mm metal male connector, R3/8 with sealant. KQ Series metal one-touch male connector joining ø10 mm tube to R3/8 (Rc3/8) male taper thread with pre-applied thread sealant. Type H body; tube O.D. ø10 mm; bore code 03 = R3/8 Rc3/8; sealant code S = with thread sealant. Brass body (nickel-plated option), black body with blue release button. Operating pressure vacuum -100 kPa to 1.0 MPa; ambient/fluid temperature -5 to 60°C. Push-in one-touch connection.

MPN: KQH10-03S · SKU: KQH1003S

KQH10-03S Applications

The KQH10-03S connects a ø10 mm tube to an R3/8 threaded port and includes factory-applied thread sealant for an immediate leak-tight seal. Its rugged metal (brass) one-touch body handles vibration and harsh conditions better than resin, making it well suited to feeding compressed air into cylinders, valves and manifold ports in machine tools, automation cells and general pneumatic circuits. Rated from vacuum to 1.0 MPa.

KQH10-03S Specifications
