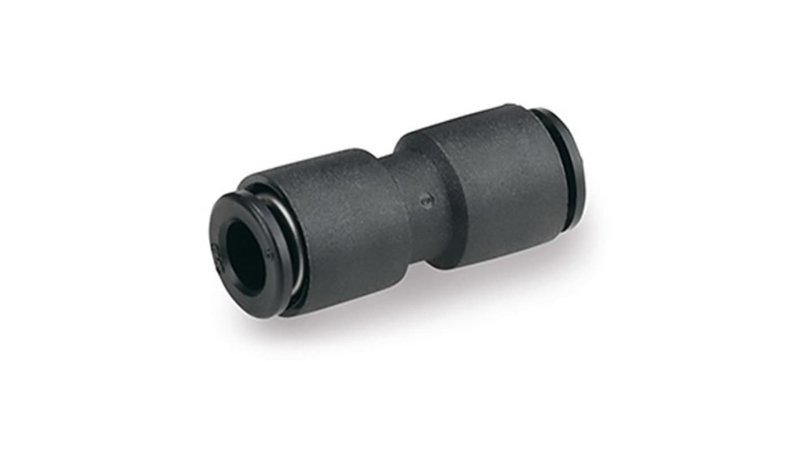

SMC KQH0800 (KQH08-00) - One-touch Straight Union, ø8 mm tube, tube-to-tube union

SMC KQH0800 One-touch Straight Union — ø8 mm metal tube-to-tube straight union. KQ Series metal one-touch straight union joining two ø8 mm tubes inline. Type H body; tube O.D. ø8 mm (same size both ports, bore code 00); no thread. Brass body (nickel-plated option), black body with blue release button. Operating pressure vacuum -100 kPa to 1.0 MPa; ambient/fluid temperature -5 to 60°C. Push-in one-touch connection.

MPN: KQH08-00 · SKU: KQH0800

KQH08-00 Applications

The KQH08-00 joins two ø8 mm tubes inline with a rugged metal (brass) one-touch body, giving a straight tube-to-tube union for repairing, extending or connecting compressed-air lines without tools. Rated from vacuum to 1.0 MPa, the metal construction withstands demanding industrial environments and vibration better than resin, suiting machine tools, automation cells and pneumatic circuits where durability is required. One-touch push-in gives fast, secure tube changeover.

KQH08-00 Specifications
