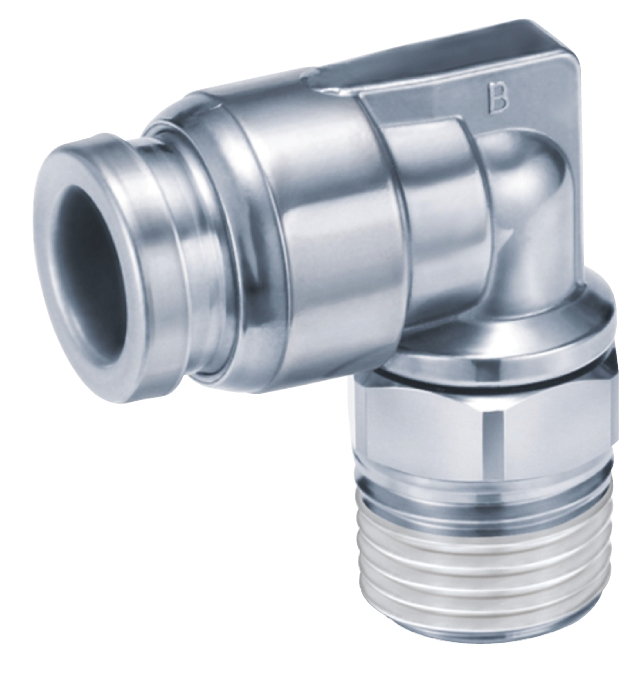

SMC KQG2L0801S (KQG2L08-01S) - Stainless Steel 316 One-Touch Fitting Male Elbow, Ø8 mm Tube O.D., R1/8 Male Thread With Seal

SMC KQG2L0801S Stainless Steel 316 One-Touch Fitting Male Elbow — Ø8 mm tube, R1/8 thread with seal. Applicable tubing O.D. Ø8 mm, R1/8 connection thread with thread seal, metal parts stainless steel 316 with special FKM seals, fluid temperature −5 to 150 °C, grease-free and steam compatible, compact and lightweight body.

MPN: KQG2L08-01S · SKU: KQG2L0801S

KQG2L08-01S Applications

The SMC KQG2L0801S takes the stainless steel 316 KQG2 male elbow up to Ø8 mm tube while retaining the compact R1/8 thread, giving more flow into the same port. It is used in food and beverage, pharmaceutical, chemical and washdown plant where higher air or steam volume is required. It suits larger actuators, blow-off nozzles and hot-fluid branches on hygienic machinery. The pre-applied thread seal removes the need for PTFE tape, while the 316 body and special FKM seals allow grease-free service to 150 °C.

KQG2L08-01S Specifications
