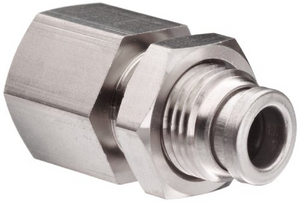

SMC KQG2E07N02 (KQG2E07-N02) - Stainless Steel 316 One-Touch Fitting Bulkhead Connector, Ø1/4" Tube O.D., NPT 1/4 Bulkhead Thread

SMC KQG2E07N02 Stainless Steel 316 One-Touch Fitting Bulkhead Connector — Ø1/4" tube, NPT 1/4 thread. Applicable tubing O.D. Ø1/4 inch, NPT 1/4 connection thread, inch size bulkhead connector, metal parts stainless steel 316 with special FKM seals, fluid temperature −5 to 150 °C, grease-free and steam compatible.

MPN: KQG2E07-N02 · SKU: KQG2E07N02

KQG2E07-N02 Applications

The SMC KQG2E07N02 is the Ø1/4" NPT 1/4 bulkhead connector of the stainless steel 316 KQG2 range, designed to carry an air or steam line cleanly through a panel or tank wall. It is used in food and beverage plants, pharmaceutical and chemical processing, and washdown areas where carbon steel or brass would corrode. It suits cabinet and enclosure pass-throughs, skid boundaries and hygienic machine frames. The 316 body and special FKM seals allow grease-free service to 150 °C and meet current Food Sanitation Law standards.

KQG2E07-N02 Specifications
