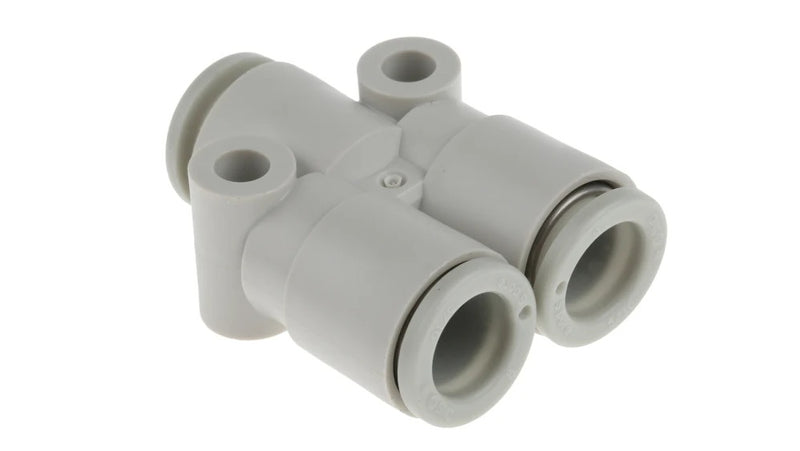

SMC KQ2U0800A (KQ2U08-00A) - One-touch Union Y, ø8 mm tube, 3-way union Y

SMC KQ2U0800A One-touch Union Y — ø8 mm tube-to-tube union Y. KQ2U Series resin one-touch union "Y" connecting three ø8 mm tubes in a Y configuration. Tube O.D. ø8 mm (same size all ports); no thread. Body PBT. Operating pressure vacuum -100 kPa to 1.0 MPa; ambient/fluid temperature -5 to 60°C. Push-in one-touch connection accepting nylon, soft nylon and polyurethane tube.

MPN: KQ2U08-00A · SKU: KQ2U0800A

KQ2U08-00A Applications

The KQ2U08-00A branches or merges compressed-air flow between three ø8 mm tubes in a Y layout, allowing one supply line to feed two outlets without tools. Rated from vacuum to 1.0 MPa, it suits distribution of air to parallel cylinders, grippers and valves in automation, packaging and material-handling equipment. The one-touch push-in design gives fast, secure tube changeover and low disconnection force for easy maintenance.

KQ2U08-00A Specifications
