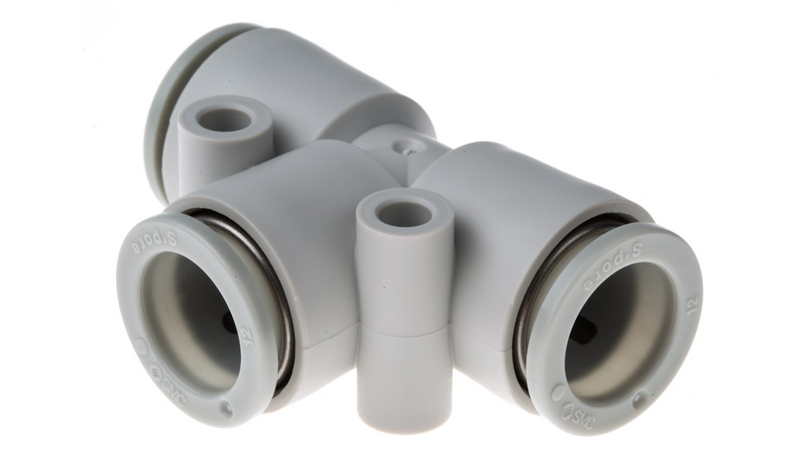

SMC KQ2T1200 (KQ2T12-00) - One-touch Union Tee, ø12 mm tube, 3-way union tee

SMC KQ2T1200 One-touch Union Tee — ø12 mm tube-to-tube union tee. KQ2 Series resin one-touch union tee connecting three ø12 mm tubes at 90°. Tube O.D. ø12 mm (same size all ports); no thread. Body PBT, white body with light-gray release button. Operating pressure vacuum -100 kPa to 1.0 MPa; ambient/fluid temperature -5 to 60°C. Push-in one-touch connection accepting nylon, soft nylon and polyurethane tube.

MPN: KQ2T12-00 · SKU: KQ2T1200

KQ2T12-00 Applications

The KQ2T12-00 splits or joins compressed-air lines by connecting three ø12 mm tubes in a tee configuration without tools. Its push-in one-touch design seals reliably from vacuum to 1.0 MPa, making it ideal for branching main air supply lines to actuators, valves and manifolds in automated machinery, packaging equipment and assembly systems. The compact resin body keeps identical heights when mounted side by side for a tidy installation.

KQ2T12-00 Specifications
