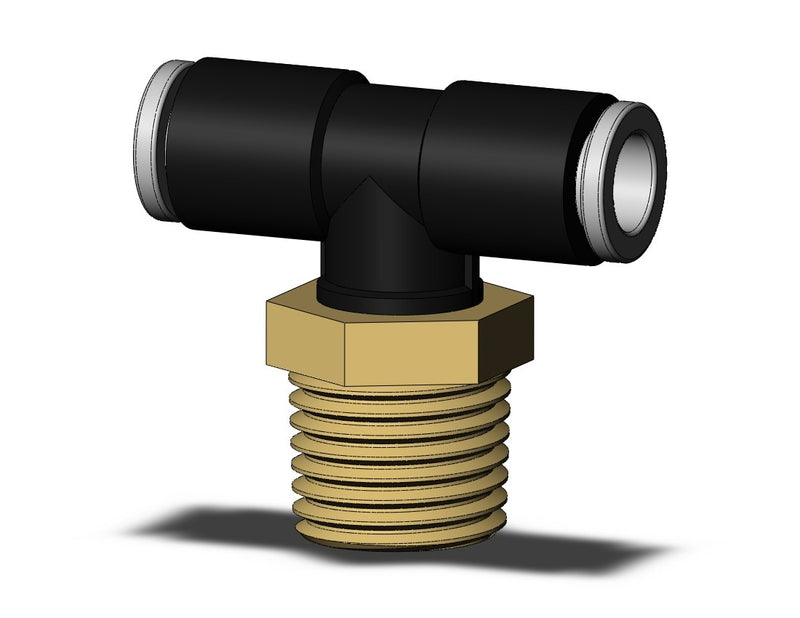

SMC KQ2T0602ASX35 (KQ2T06-02AS-X35) - Male Branch Tee, ø6 mm tube, R1/4 male branch tee

SMC KQ2T0602ASX35 Male Branch Tee — ø6 mm tube to R1/4 male branch tee, brass with thread sealant, X35 made-to-order special specification. KQ2T Series metric size One-touch fitting male branch tee, X35 made-to-order special specification. Applicable tubing O.D. ø6 mm, connection thread R1/4, brass thread material with thread sealant. Branches a line from a central male thread with a one-touch push-in tube port on each side. Usable in vacuum to -100 kPa up to 1 MPa.

MPN: KQ2T06-02AS-X35 · SKU: KQ2T0602ASX35

KQ2T06-02AS-X35 Applications

The KQ2T06-02AS-X35 is a male branch tee that splits a pneumatic line: two ø6 mm one-touch tube ports run through the top while a central R1/4 male thread mounts into a female port, branching flow at 90°. The X35 suffix denotes an SMC made-to-order special specification of the standard AS (sealant) tee. Pre-applied thread sealant on the brass thread gives a leak-tight mount, and the one-touch ports allow tool-free tube connection with sealing from -100 kPa vacuum up to 1 MPa in general automation piping.

KQ2T06-02AS-X35 Specifications
