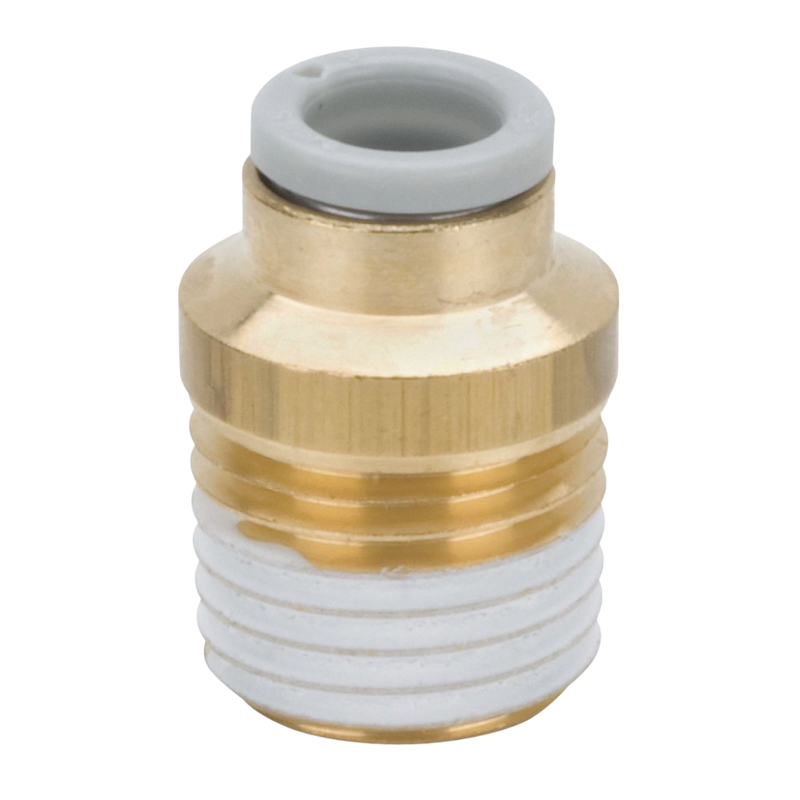

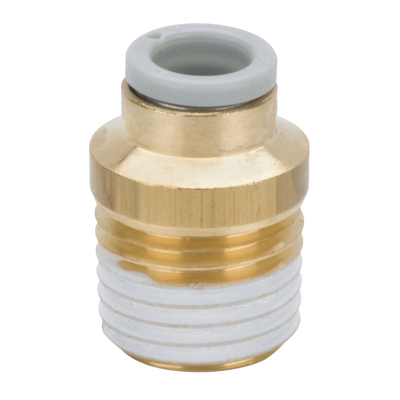

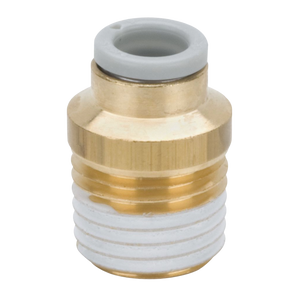

SMC KQ2S0602AS (KQ2S06-02AS) - Hexagon Socket Head Male Connector, ø6 mm tube, R1/4 hex socket male connector

SMC KQ2S0602AS Hexagon Socket Head Male Connector — ø6 mm tube to R1/4 male connector with hex socket head, brass body with pre-applied thread sealant. KQ2S Series metric size One-touch fitting hexagon socket head male connector. Applicable tubing O.D. ø6 mm, connection thread R1/4, brass thread material with thread sealant pre-applied. Recessed hex socket head allows compact close-pitch installation. Usable in vacuum to -100 kPa up to 1 MPa.

MPN: KQ2S06-02AS · SKU: KQ2S0602AS

KQ2S06-02AS Applications

The KQ2S06-02AS is a straight hexagon socket head male connector joining ø6 mm tubing to an R1/4 female port. The recessed hex-socket head is tightened with a hex key, so fittings can be installed close together in dense manifold blocks and compact machinery. Pre-applied thread sealant on the brass male thread ensures a leak-free connection. The one-touch push-in end and special profile seal provide tool-free tube connection and sealing from -100 kPa vacuum up to 1 MPa in general pneumatic piping.

KQ2S06-02AS Specifications
