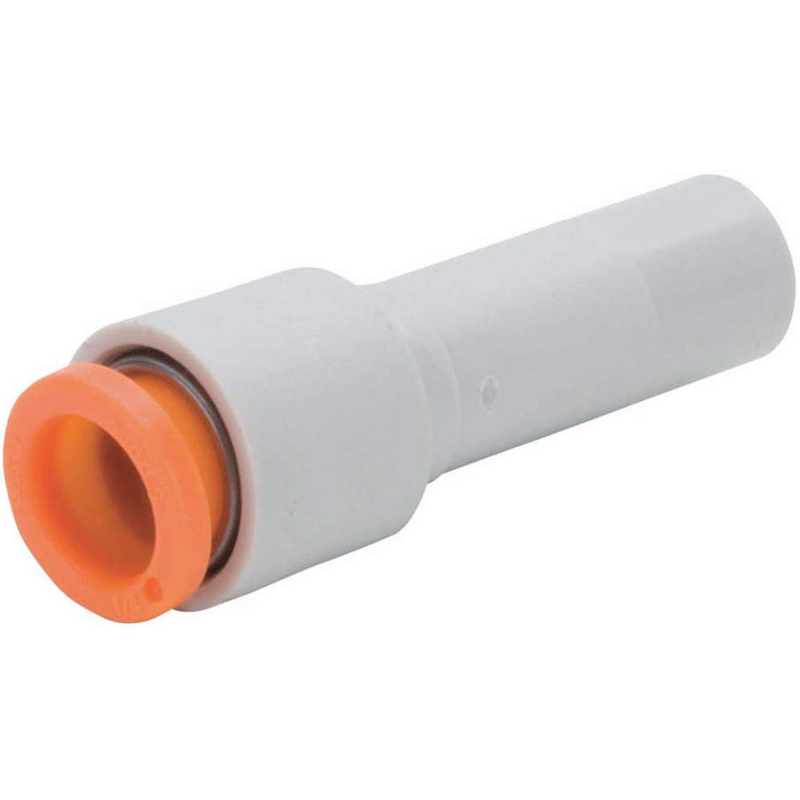

SMC KQ2R0709A (KQ2R07-09A) - Plug-in Reducer, ø1/4" tube, ø5/16" plug-in reducer

SMC KQ2R0709A Plug-in Reducer — Inch-size different-diameter reducer joining ø1/4" tube to a ø5/16" one-touch fitting. KQ2R Series inch size One-touch fitting plug-in reducer. Applicable tubing O.D. ø1/4", applicable fitting size ø5/16". Reduces between two different tube/fitting diameters with one-touch push-in connections. Usable in vacuum to -100 kPa up to 1 MPa. Release collar provides low disconnection force.

MPN: KQ2R07-09A · SKU: KQ2R0709A

KQ2R07-09A Applications

The KQ2R07-09A is a plug-in reducer that adapts a ø1/4" tube to a ø5/16" one-touch fitting size, letting you transition between two different line diameters inline. One end plugs directly into a ø5/16" push-in port while the other accepts ø1/4" tubing, both tool-free. It is ideal for stepping tube sizes up or down along a pneumatic run. The special profile seal maintains a leak-tight joint from -100 kPa vacuum up to 1 MPa in general automation piping.

KQ2R07-09A Specifications
