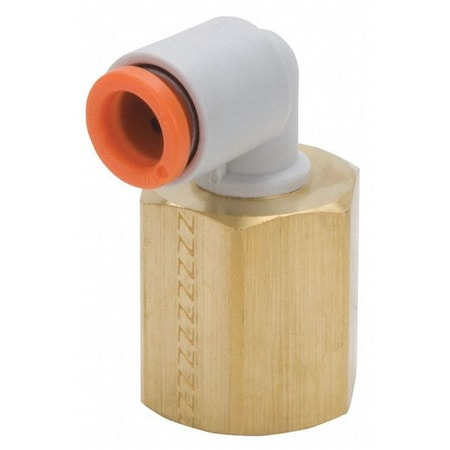

SMC KQ2LF0602A (KQ2LF06-02A) - One-Touch Fitting Female Elbow, Ø6 mm Tube O.D., Rc1/4 Female Thread

SMC KQ2LF0602A One-Touch Fitting Female Elbow — Ø6 mm tube, Rc1/4 female thread. Applicable tubing O.D. Ø6 mm, Rc1/4 female thread, brass thread material with no plating, elbow body, usable in vacuum to −100 kPa.

MPN: KQ2LF06-02A · SKU: KQ2LF0602A

KQ2LF06-02A Applications

The SMC KQ2LF0602A is the female-threaded elbow of the KQ2 family, accepting an Rc1/4 male stud instead of screwing into a port. It is used where a nipple, male adaptor or gauge stem must be turned into the fitting, such as on air-preparation units, distribution blocks and instrument take-off points in packaging and process machinery. It suits retrofits where the existing pipework already presents a male thread, letting a Ø6 mm push-in tube be brought in at 90° without adding an extra adaptor and leak path.

KQ2LF06-02A Specifications
