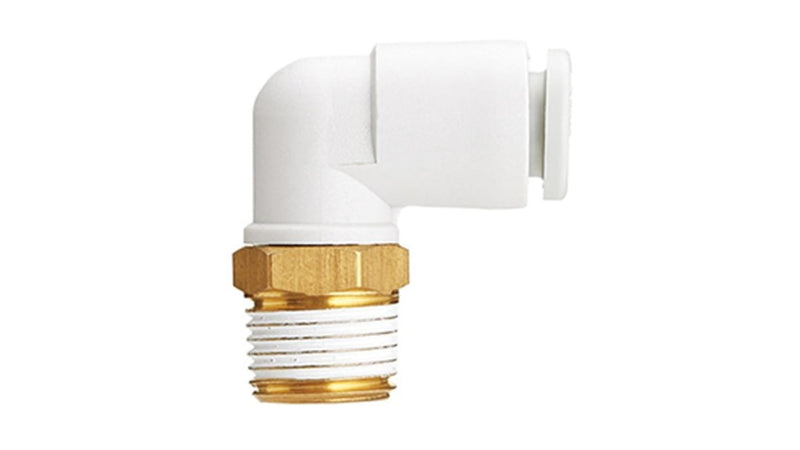

SMC KQ2L1202NS (KQ2L12-02NS) - Male Elbow, ø12 mm tube, R1/4 male elbow

SMC KQ2L1202NS Male Elbow — ø12 mm tube to R1/4 male elbow, nickel-plated brass body with pre-applied thread sealant. KQ2L Series metric size One-touch fitting male elbow. Applicable tubing O.D. ø12 mm, connection thread R1/4, brass + electroless nickel plated thread material with thread sealant pre-applied. Usable in vacuum to -100 kPa up to 1 MPa. Push-in one-touch connection with release collar for low disconnection force.

MPN: KQ2L12-02NS · SKU: KQ2L1202NS

KQ2L12-02NS Applications

The KQ2L12-02NS routes ø12 mm tubing at 90° into an R1/4 female port. Its electroless nickel-plated brass body suits environments where added corrosion resistance and a clean appearance are desired, while the one-touch push-in collar allows fast tube insertion and removal without tools. Pre-applied thread sealant gives a reliable seal, and the special profile seal supports pressures from -100 kPa vacuum up to 1 MPa across automation, machine tool, and general pneumatic piping.

KQ2L12-02NS Specifications
