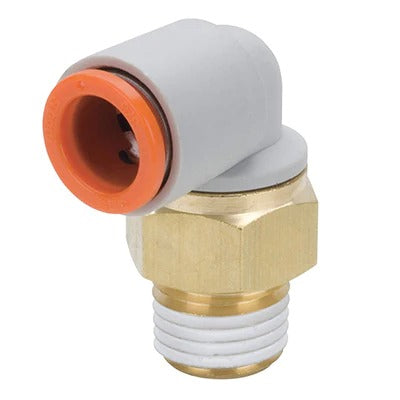

SMC KQ2L1136AS (KQ2L11-36AS) - Male Elbow, ø3/8" tube, NPT 3/8 male elbow

SMC KQ2L1136AS Male Elbow — Inch size ø3/8" tube to NPT 3/8 male elbow, brass body with pre-applied thread sealant. KQ2L Series inch size One-touch fitting male elbow. Applicable tubing O.D. ø3/8" (inch), connection thread NPT 3/8, brass (no plating) thread material with thread sealant pre-applied. Usable in vacuum to -100 kPa up to 1 MPa. Push-in one-touch connection with release collar for low disconnection force.

MPN: KQ2L11-36AS · SKU: KQ2L1136AS

KQ2L11-36AS Applications

The KQ2L11-36AS connects ø3/8" tubing at a right angle into an NPT 3/8 female port. Its swivel elbow body and one-touch push-in mechanism speed up installation in tight spaces where routing tubing around corners is required. Pre-applied thread sealant on the brass male thread ensures a leak-free seal on air lines, and the special profile seal allows use from a low vacuum of -100 kPa up to 1 MPa in general pneumatic control, automation, and instrumentation piping.

KQ2L11-36AS Specifications
