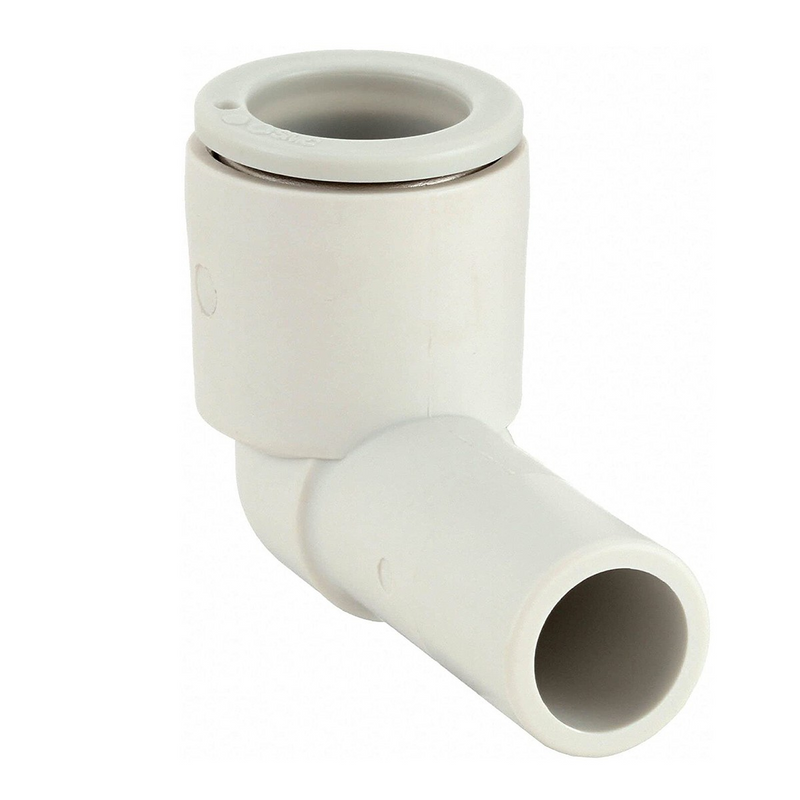

SMC KQ2L0899A (KQ2L08-99A) - Plug-in Reducer Elbow, 8 mm Stem, 8 mm Tube O.D.

SMC KQ2L0899A Plug-in Reducer Elbow — 8 mm stem x 8 mm tube. KQ2 Series one-touch plug-in elbow with an 8 mm plug-in stem and an 8 mm push-in tube port at 90 degrees, for plugging directly into another one-touch fitting or manifold. Fluid: air/water. Operating pressure -100 kPa to 1 MPa, proof pressure 3 MPa, temperature -5 to 60 C. Release collar allows tool-free tube insertion and removal.

MPN: KQ2L08-99A · SKU: KQ2L0899A

KQ2L08-99A Applications

Provides a 90-degree turn by plugging its 8 mm stem into another KQ2 one-touch fitting or manifold port while accepting an 8 mm tube on the other end. This lets tubing be redirected in tight spaces without adding a threaded joint. The one-touch release collar allows the tube to be inserted or removed by hand, and the special profile seal maintains a leak-tight joint from low vacuum up to 1 MPa.

KQ2L08-99A Specifications
