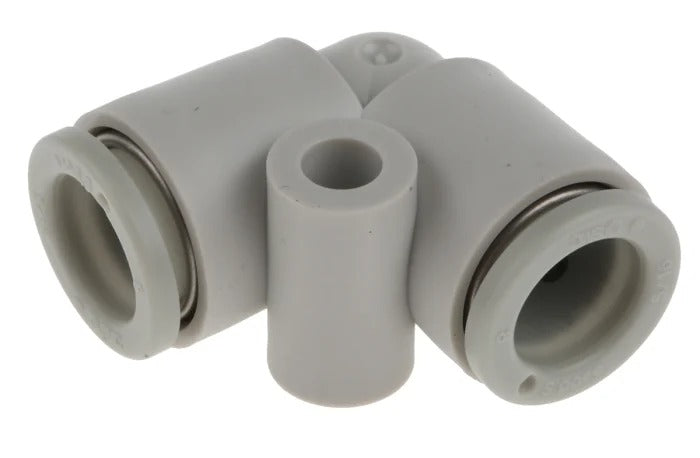

SMC KQ2L0800A (KQ2L08-00A) - Union Elbow, 8 mm Tube O.D.

SMC KQ2L0800A Union Elbow — 8 mm tube x 8 mm tube. KQ2 Series one-touch union elbow joining two 8 mm O.D. tubes at 90 degrees (tube-to-tube, no thread). Fluid: air/water. Operating pressure -100 kPa to 1 MPa, proof pressure 3 MPa, temperature -5 to 60 C. Push-in connection at both ends with release collar for tool-free tube insertion and removal.

MPN: KQ2L08-00A · SKU: KQ2L0800A

KQ2L08-00A Applications

Connects two 8 mm pneumatic tubes at a right angle, allowing an air line to change direction without a threaded port. The one-touch release collar lets each tube be inserted or removed by hand without tools, and the special profile seal keeps the joint leak-tight from low vacuum up to 1 MPa. Typical in machine tubing routing, control panels and automation cells.

KQ2L08-00A Specifications
