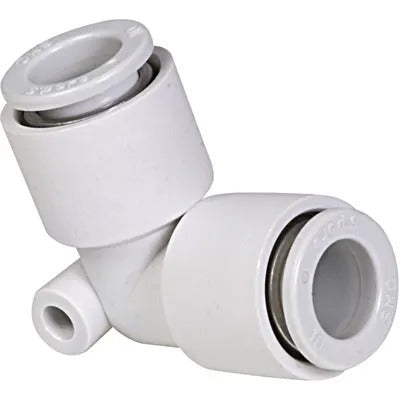

SMC KQ2L0600A (KQ2L06-00A) - Union Elbow, 6 mm Tube O.D.

SMC KQ2L0600A Union Elbow — 6 mm tube x 6 mm tube. KQ2 Series one-touch union elbow joining two 6 mm O.D. tubes at 90 degrees (tube-to-tube, no thread). Fluid: air/water. Operating pressure -100 kPa to 1 MPa, proof pressure 3 MPa, temperature -5 to 60 C. Push-in connection at both ends with release collar for tool-free tube insertion and removal.

MPN: KQ2L06-00A · SKU: KQ2L0600A

KQ2L06-00A Applications

Connects two 6 mm pneumatic tubes at a right angle, letting an air line change direction without a threaded port. The one-touch release collar allows each tube to be inserted or removed by hand without tools, and the special profile seal keeps the joint leak-tight from low vacuum up to 1 MPa. Common in machine tubing runs, panels and automation cells where routing must turn 90 degrees.

KQ2L06-00A Specifications
