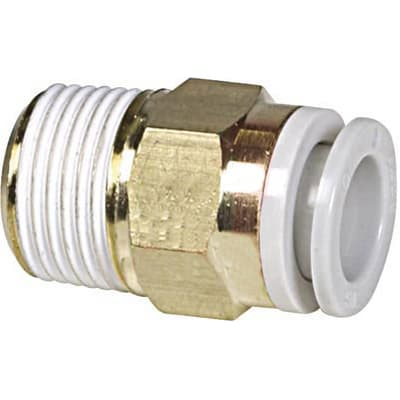

SMC KQ2H0602S (KQ2H06-02S) - One-touch Male Connector, Ø6 Tube, R1/4 Thread

SMC KQ2H0602S One-touch Male Connector — Ø6 tube x R1/4 male with sealant (superseded by KQ2H06-02AS). SMC KQ2H06-02S KQ2 Series One-touch male connector, Ø6 mm tube to R1/4 male thread with pre-applied thread sealant (white body, light gray release button). Legacy KQ2 part number; manufacture discontinued 5/2012, replacement KQ2H06-02AS. Usable in vacuum to -100 kPa up to 1 MPa. Fluid: air/water; ambient/fluid temperature -5 to 60 degC (no freezing).

MPN: KQ2H06-02S · SKU: KQ2H0602S

KQ2H06-02S Applications

The KQ2H06-02S is the legacy part number for a Ø6 mm tube to R1/4 male one-touch connector with thread sealant; SMC discontinued this number in 5/2012 and now supplies KQ2H06-02AS as the direct replacement. Functionally it threads into R1/4 ports on valves and manifolds with a sealed joint and provides tool-free tube insertion and release from low vacuum (-100 kPa) to 1 MPa on air and water lines.

KQ2H06-02S Specifications
