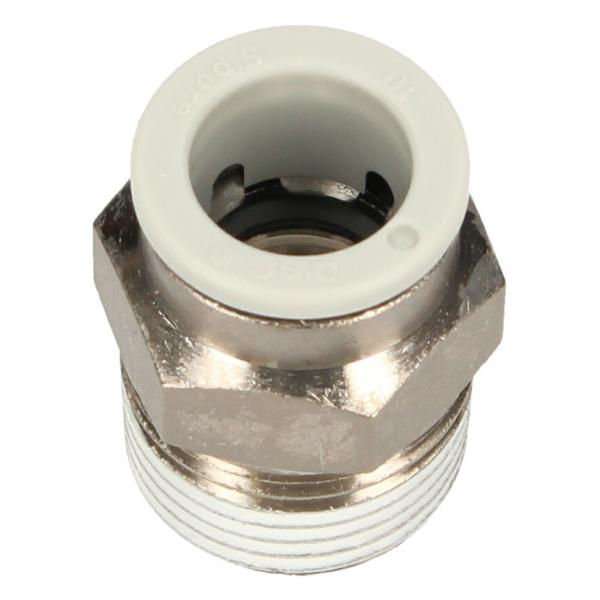

SMC KQ2H0602NS (KQ2H06-02NS) - One-touch Male Connector, Ø6 Tube, R1/4 Thread

SMC KQ2H0602NS One-touch Male Connector — Ø6 tube x R1/4 male, nickel-plated brass with sealant. SMC KQ2H06-02NS KQ2 Series One-touch male connector, Ø6 mm tube to R1/4 male thread. Brass + electroless nickel plated body with pre-applied thread sealant. Usable in vacuum to -100 kPa up to 1 MPa. Fluid: air/water; ambient/fluid temperature -5 to 60 degC (no freezing). Accepts nylon, soft nylon and polyurethane tubing with one-touch insertion and release.

MPN: KQ2H06-02NS · SKU: KQ2H0602NS

KQ2H06-02NS Applications

The KQ2H06-02NS connects a Ø6 mm tube to an R1/4 male port and differs from the KQ2H06-02AS by its electroless nickel-plated brass body, giving added corrosion resistance and a uniform finish for cleaner or more demanding environments. Pre-applied thread sealant ensures a leak-tight R-thread joint, and the one-touch collar allows tool-free tube insertion and release from low vacuum (-100 kPa) to 1 MPa on air and water lines.

KQ2H06-02NS Specifications
