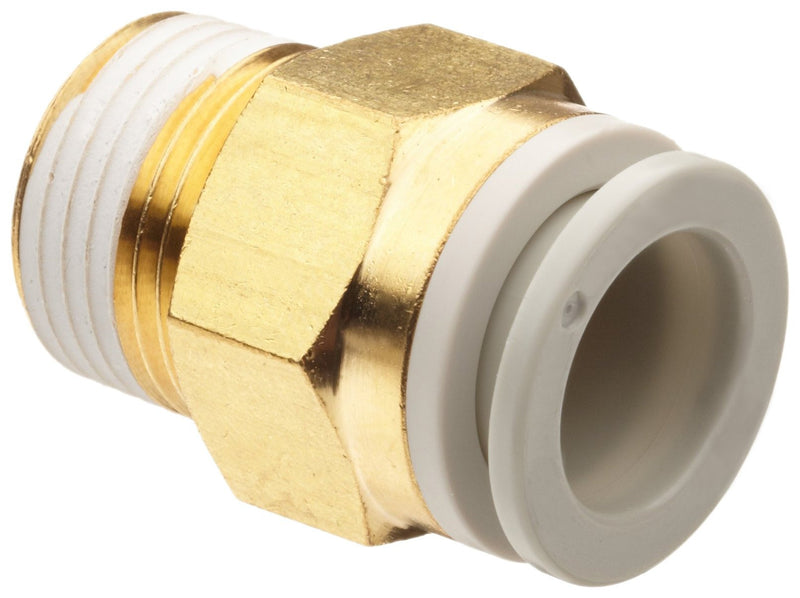

SMC KQ2H0601AS (KQ2H06-01AS) - One-touch Male Connector, Ø6 Tube, R1/8 Thread

SMC KQ2H0601AS One-touch Male Connector — Ø6 tube x R1/8 male, brass with sealant. SMC KQ2H06-01AS KQ2 Series One-touch male connector, Ø6 mm tube to R1/8 male thread. Brass body with pre-applied thread sealant. Usable in vacuum to -100 kPa up to 1 MPa. Fluid: air/water; ambient/fluid temperature -5 to 60 degC (no freezing). Accepts nylon, soft nylon and polyurethane tubing with one-touch insertion and release.

MPN: KQ2H06-01AS · SKU: KQ2H0601AS

KQ2H06-01AS Applications

The KQ2H06-01AS connects a Ø6 mm tube to an R1/8 male port, threading directly into valves, cylinders and manifolds. The pre-applied thread sealant provides a leak-tight R-thread joint without additional tape, and the brass body suits general industrial air and water service. Its one-touch collar grips the tube on insertion and releases with a light push for fast tool-free assembly, working from low vacuum (-100 kPa) to 1 MPa.

KQ2H06-01AS Specifications
