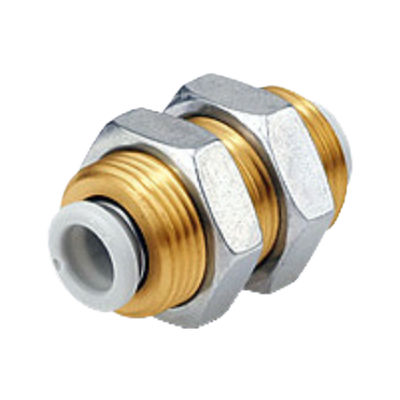

SMC KQ2E0600A (KQ2E06-00A) - One-touch Bulkhead Union, ø6 tube x ø6 tube, Bulkhead Union

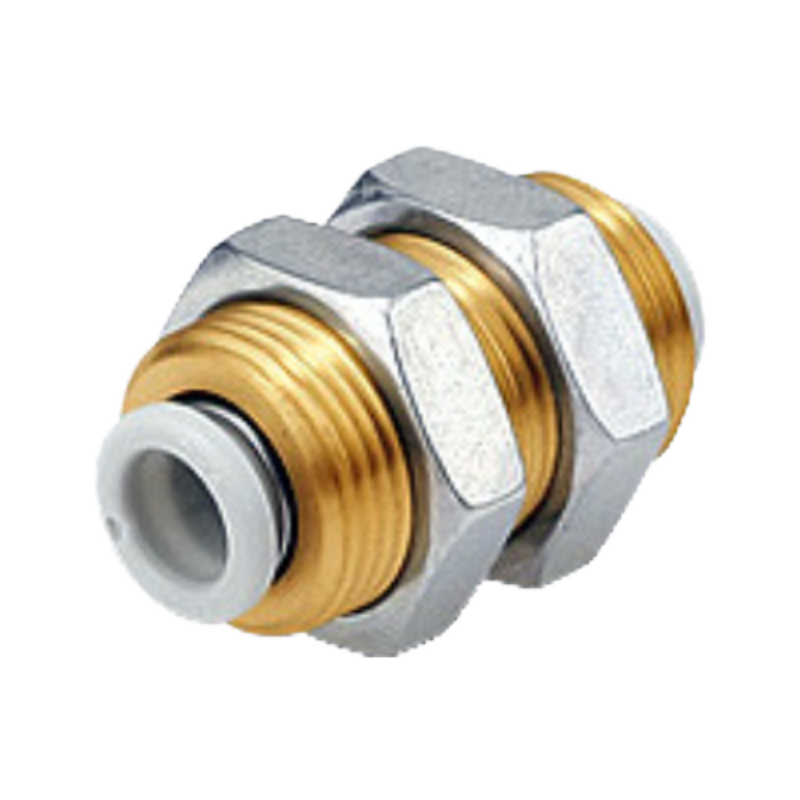

SMC KQ2E0600A One-touch Bulkhead Union — Bulkhead union, ø6 tube both ends, panel through-mount. KQ2 series one-touch bulkhead union, ø6 mm tube on both ends, panel through-mount (00A option). Special profile seal for use from low vacuum to 1.0 MPa; max operating pressure 1.0 MPa, vacuum to -100 kPa. Ambient/fluid temperature -5 to 60°C (water 0 to 40°C). Applicable tubing: nylon, soft nylon, polyurethane. Release collar frees chuck and collet for low disconnection force.

MPN: KQ2E06-00A · SKU: KQ2E0600A

KQ2E06-00A Applications

The KQ2E06-00A is a KQ2 series one-touch bulkhead union that routes a ø6 mm tube through a panel or partition, connecting ø6 tube on both sides. Its special profile seal supports operation from low vacuum up to 1.0 MPa without reducing flow, and the one-touch mechanism allows push-in connection and low-force release. Applicable to nylon and polyurethane tubing, it is used to carry pneumatic lines across enclosures, cabinets, and machine panels while keeping a clean, serviceable connection on each side.

KQ2E06-00A Specifications
