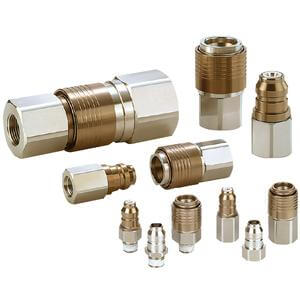

SMC KKA3S02M (KKA3S-02M) - S-Coupler Socket, Rc 1/4 male thread, Stainless Steel Socket

SMC KKA3S02M S-Coupler Socket — Stainless steel socket, male thread with check valve. KKA series S-coupler socket, body size 3 (1/8), port 02 (R/Rc 1/4), male thread type with seal, built-in check valve. Body material SUS304; seal material FKM; non-greased specification (standard). Fluid: water, air. Slim body / large effective-area construction using no steel balls or valve springs.

MPN: KKA3S-02M · SKU: KKA3S02M

KKA3S-02M Applications

The KKA3S-02M is the socket half of SMC's KKA stainless steel S-coupler series, mating with a KKA plug for quick connection of water and air lines. Its SUS304 body and FKM seal handle corrosive or washdown environments, and the non-greased build avoids fluid contamination. The built-in check valve stops flow on disconnection to limit spillage, while the ball-free, spring-free construction keeps the flow path open and the body compact. The male Rc 1/4 thread installs directly into ports and manifolds.

KKA3S-02M Specifications
