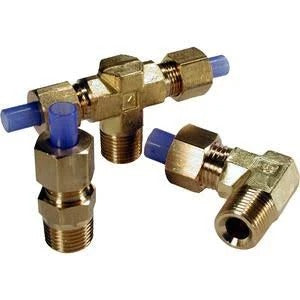

SMC KFH12U04S (KFH12U-04S) - Insert Fitting, 12 mm Tube O.D., R1/2 Male Connector

SMC KFH12U04S Insert Fitting — Male connector insert fitting, 12 mm tube, R1/2 male thread, with sealant. SMC KFH12U-04S insert fitting, male connector type, from the KF insert-fitting series. Applicable tubing outside diameter 12 mm; connection thread R1/2 (04) male, with S indicating the sealant-applied thread option. The KF insert mechanism provides reliable retaining force on both sides of the tube: the tube grip retains the tube in position and the tube holder prevents the tube from being disconnected during piping, while the union nut requires no removal for tube installation. Body / union nut brass, sleeve resin or brass. Suitable for nylon, soft nylon and polyurethane tubing, operating from vacuum up to 1.0 MPa.

MPN: KFH12U-04S · SKU: KFH12U04S

KFH12U-04S Applications

The KFH12U-04S is a male-connector insert fitting joining 12 mm O.D. pneumatic tubing to an R1/2 female port, with pre-applied thread sealant (S option) for a leak-tight seal. The KF insert mechanism grips and holds the tube on both sides so it cannot pull out under pressure, and the union nut need not be removed to fit the tube. It is used to connect air lines to valves, cylinders, manifolds and air-preparation equipment on automation and general pneumatic machinery running from vacuum to 1.0 MPa.

KFH12U-04S Specifications
