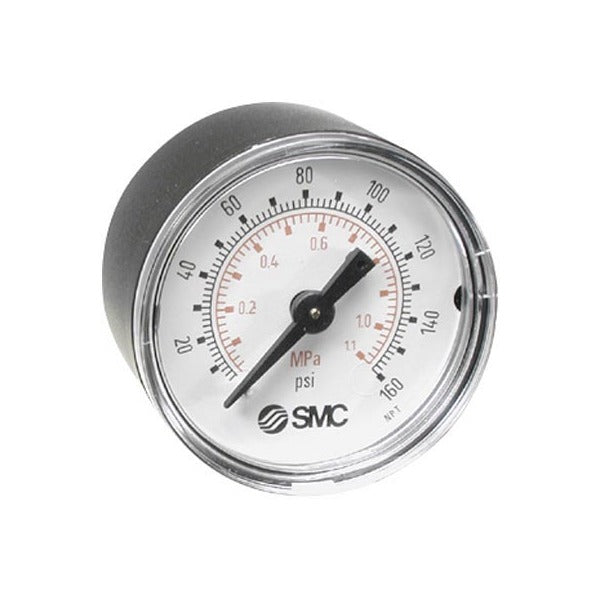

SMC K40MP10N01MS (K40-MP1.0-N01MS) - Pressure Gauge, 0 to 1.0 MPa Range, 40 mm Dial Gauge

SMC K40MP10N01MS Pressure Gauge — General-purpose pressure gauge, 40 mm dial, 0 to 1.0 MPa, R1/8 back-mount connection. SMC K40-MP1.0-N01MS general-purpose pressure gauge with a 40 mm (1-1/2 in) diameter dial. Pressure display range 0 to 1.0 MPa (approx. 0 to 160 psi). Connection thread R1/8 (1/8) with back-mount (MS) connection port. Bourdon-tube type mechanical gauge for indicating air pressure in pneumatic systems and air-preparation equipment; suitable for use downstream of regulators and on FRL units and manifolds. Non-electrical, direct-reading dial with pointer.

MPN: K40-MP1.0-N01MS · SKU: K40MP10N01MS

K40-MP1.0-N01MS Applications

The K40-MP1.0-N01MS is a 40 mm dial pressure gauge reading 0 to 1.0 MPa (about 0 to 160 psi) with an R1/8 back-mount connection. It gives a direct mechanical indication of air pressure downstream of regulators and on FRL units, manifolds and air lines, letting operators set and verify working pressure. Common on pneumatic panels and air-preparation stations in automation, packaging and general factory equipment where compact local pressure indication is needed.

K40-MP1.0-N01MS Specifications
