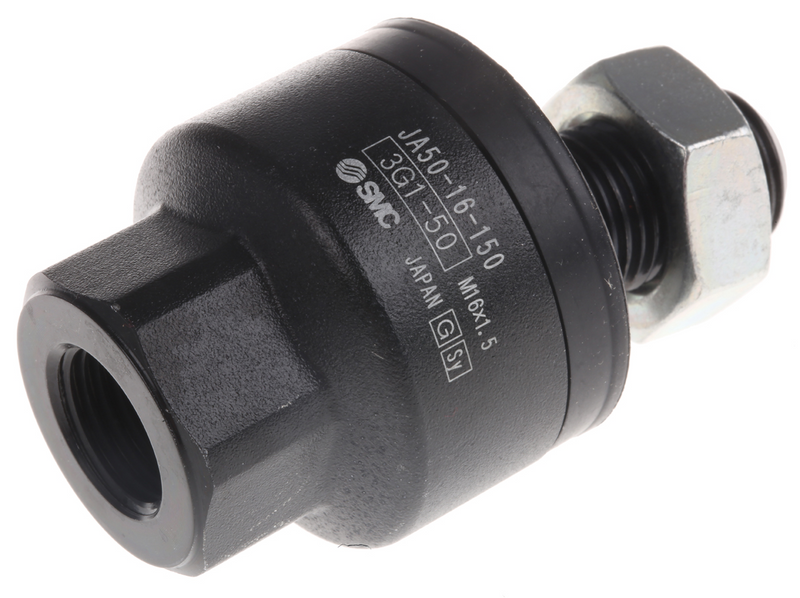

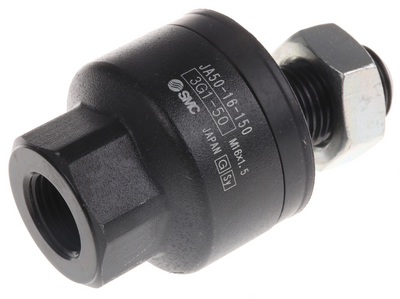

SMC JA5016150 (JA50-16-150) - Floating Joint, M16 x 1.5 Thread, 150 mm Rod Length

SMC JA5016150 Floating Joint — Standard-type rod-end floating joint, M16 x 1.5 thread, 150 mm rod length, for 50/63 mm bore cylinders. SMC JA50-16-150 standard-type floating joint (rod-end coupler) from the JA series. Connecting thread nominal size M16 x 1.5, applicable to cylinders with a 50 mm (and 63 mm) bore, overall connecting-rod length 150 mm. The floating joint absorbs off-centering and loss of parallel accuracy between the cylinder rod and the driven body, so centering is unnecessary and high machining accuracy is not required. Internal ball/socket construction compensates allowable eccentricity and permits a rotation angle of +/-5 degrees. Steel body with surface treatment; supplied with the required lock nut, reducing lateral rod load and installation time on double-acting pneumatic cylinders.

MPN: JA50-16-150 · SKU: JA5016150

JA50-16-150 Applications

The JA50-16-150 couples a 50 or 63 mm bore pneumatic cylinder rod (M16 x 1.5) to its load while absorbing misalignment and loss of parallelism between actuator and driven body. It removes the need for exact centering, cuts installation time and protects rod bearings and seals from side loads. Suited to heavier clamping, pressing, feeding and lifting duties on automation, packaging and material-handling equipment where the cylinder and guided load cannot be held perfectly concentric.

JA50-16-150 Specifications
