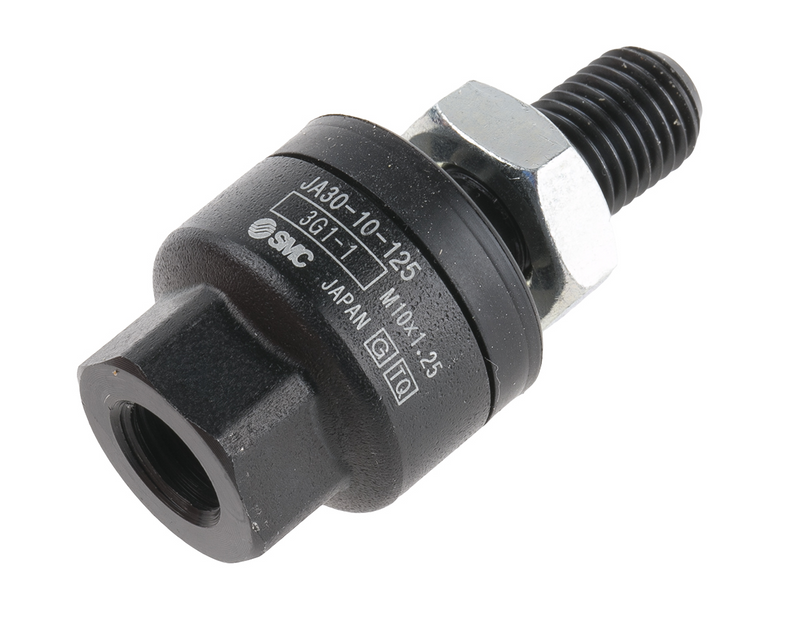

SMC JA3010125 (JA30-10-125) - Floating Joint, M10 x 1.25 Thread, Basic Mounting Style

SMC JA3010125 Floating Joint — M10 x 1.25 thread for 25 mm and 32 mm cylinder bores. Standard type floating joint, basic mounting style, M10 x 1.25 thread nominal size, applicable cylinder bore sizes 25 mm and 32 mm, absorbs off-centering and loss of parallel accuracy of double acting cylinders.

MPN: JA30-10-125 · SKU: JA3010125

JA30-10-125 Applications

With its M10 x 1.25 thread sized for 25 mm and 32 mm bore cylinders, the SMC JA3010125 is the floating joint reached for on small and mid-bore double acting actuators. It is used in assembly automation, packaging machinery and material handling rigs where a cylinder rod drives a guided load. It is suited for connecting rods to slides and carriages, linking cylinders to jigs and fixtures, and coupling actuators to guided presses. Because it absorbs off-centering and loss of parallel accuracy, centering is unnecessary at installation, which cuts alignment time and spares the rod seal and bearing from side load wear.

JA30-10-125 Specifications
