SMC JA2510150 (JA25-10-150) - Floating Joint, M10 x 1.5 Thread, 150 mm Rod Length

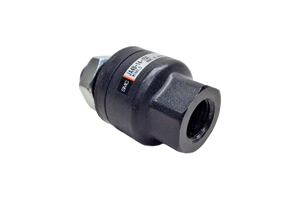

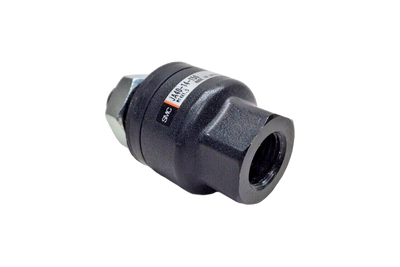

SMC JA2510150 Floating Joint — Standard-type rod-end floating joint, M10 x 1.5 thread, 150 mm rod length, for 25 mm bore cylinders. SMC JA25-10-150 standard-type floating joint (rod-end coupler) from the JA series. Connecting thread nominal size M10 x 1.5, applicable to cylinders with a 25 mm bore, overall connecting-rod length 150 mm. The floating joint absorbs off-centering and loss of parallel accuracy between the cylinder rod and the driven body, so centering is unnecessary and a high level of machining accuracy is not required. Allowable eccentricity is compensated by the internal ball/socket construction and the permissible rotation angle is +/-5 degrees. Body material is steel with surface treatment; supplied with the required lock nut. Used on double-acting pneumatic cylinders to reduce installation time and lateral load on the rod.

MPN: JA25-10-150 · SKU: JA2510150

JA25-10-150 Applications

The JA25-10-150 couples a 25 mm bore pneumatic cylinder rod (M10 x 1.5) to its load while absorbing misalignment and loss of parallelism between the cylinder and the driven body. It removes the need for precise centering during assembly, shortens installation time and reduces side-load wear on the rod and seals. Typical uses include clamping, feeding, ejecting and press mechanisms on automation, packaging and assembly machinery where the actuator and guided load cannot be held perfectly concentric.
