SMC JA156100 (JA15-6-100) - Floating Joint, M6x1 thread, 123 N max force

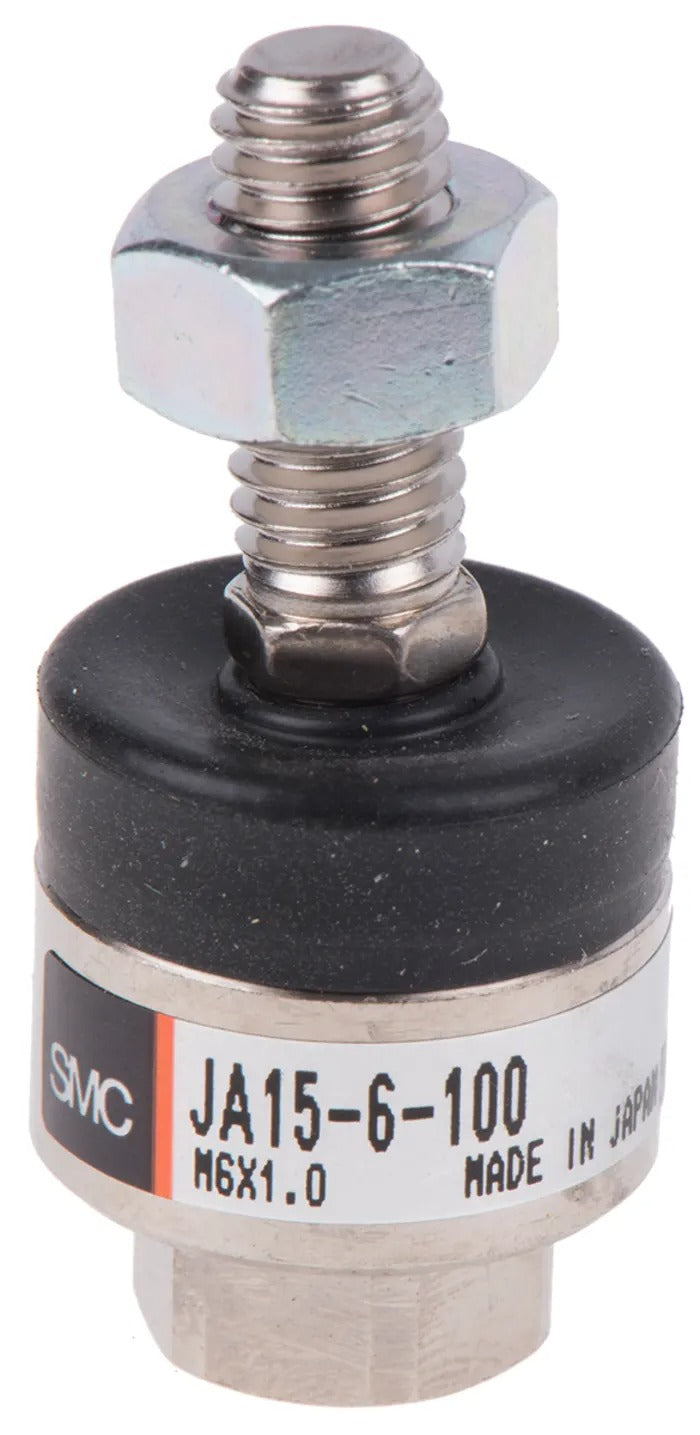

SMC JA156100 Floating Joint — M6x1 thread, 123 N max force, standard type. JA series standard type floating joint. Basic type. Thread nominal size M6x1. Applicable bore size 15 mm. Maximum operating tension and compression force 123 N (basic type). Allowable eccentricity 0.5 mm. Rotating angle +/-5 degrees. Operating pressure: pneumatic cylinder 1 MPa or less, hydraulic cylinder 3.5 MPa or less. Ambient temperature -5 to 60 C. Weight approx. 0.02 kg. Dust cover fitted; connects a cylinder rod to a driven load.

MPN: JA15-6-100 · SKU: JA156100

JA15-6-100 Applications

Rod-end coupler joining a pneumatic or hydraulic cylinder rod to its load while compensating for off-centering and misalignment, so machine builders skip time-consuming centering. Featuring an M6x1 thread and 123 N rated force, it fits small cylinders around 15 mm bore in clamps, feeders and positioning mechanisms. The +/-5 degree rotation and 0.5 mm allowable eccentricity shield the cylinder from lateral loads, extending rod-seal life, and the integral dust cover keeps the joint clean for long service.
