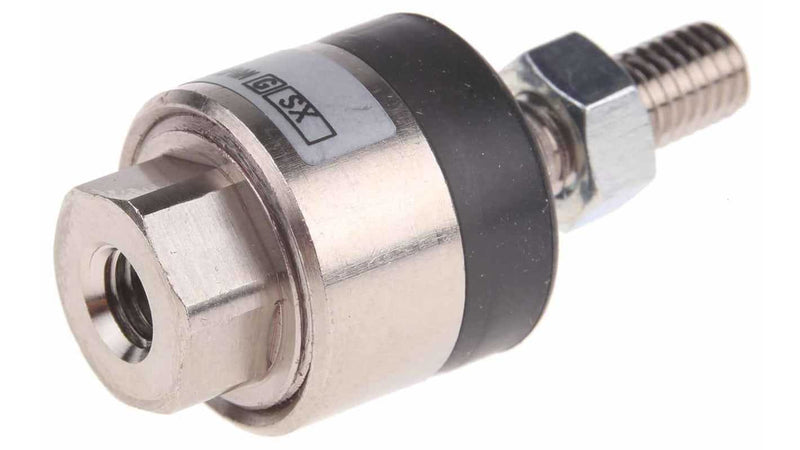

SMC JA155080 (JA15-5-080) - Floating Joint, M5x0.8 thread, 123 N max force

SMC JA155080 Floating Joint — M5x0.8 thread, 123 N max force, standard type. JA series standard type floating joint. Basic type. Thread nominal size M5x0.8. Applicable bore size 10/15 mm. Maximum operating tension and compression force 123 N (basic type). Allowable eccentricity 0.5 mm. Rotating angle +/-5 degrees. Operating pressure: pneumatic cylinder 1 MPa or less, hydraulic cylinder 3.5 MPa or less. Ambient temperature -5 to 60 C. Weight approx. 0.02 kg. Dust cover fitted; connects a cylinder rod to a driven load.

MPN: JA15-5-080 · SKU: JA155080

JA15-5-080 Applications

Rod-end coupler that connects a pneumatic or hydraulic cylinder rod to a driven load while absorbing off-centering and loss of parallel accuracy, removing the need for precise centering during installation. With an M5x0.8 thread and 123 N rated force, it suits small cylinders (bore 10-15 mm) in jigs, presses and material-handling mechanisms. The +/-5 degree rotation and 0.5 mm allowable eccentricity protect the cylinder from side loads, and a dust cover ensures long service life.
