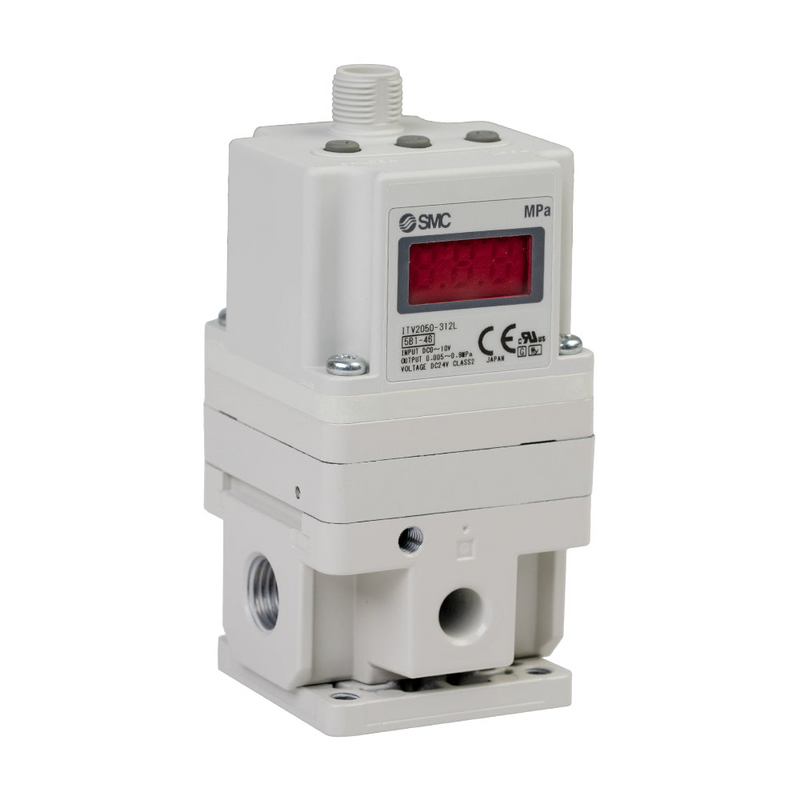

SMC ITV305004F3N3X60 (ITV3050-04F3N3-X60) - Electro-pneumatic Regulator, G 3/8 Port, X60 Made-to-Order Option
SMC ITV305004F3N3X60 Electro-pneumatic Regulator — G 3/8 port with bar pressure display and made-to-order option X60. 3000 type body, 0.005 to 0.9 MPa regulating pressure range, 24 VDC source voltage, 4 to 20 mA DC current input signal, 4 to 20 mA DC analog monitor output (sink type), G 3/8 port, bar pressure display unit, without bracket, without cable connector, made-to-order option X60.
MPN: ITV3050-04F3N3-X60 · SKU: ITV305004F3N3X60
ITV3050-04F3N3-X60 Applications
The G 3/8 port, bar display and made-to-order X60 option set the SMC ITV305004F3N3X60 apart from its Rc-threaded siblings, making it the fit for BSPP-plumbed machinery commissioned in bar. This customer-made electro-pneumatic regulator is used in automotive, packaging, printing and general factory automation where air pressure must follow an electrical setpoint steplessly. It is suited for web tension control, clamping and press force control, and dispensing pressure regulation. The 4 to 20 mA current loop resists electrical noise over long runs, and the G 3/8 port drops straight into BSPP manifolds without thread adapters.
ITV3050-04F3N3-X60 Specifications
| Brand | SMC | Manufacturer Part No. | ITV3050-04F3N3-X60 |
| Product Type | Electro-pneumatic Regulator (Customer-made) | Series | ITV3000 |
| Type | 3000 type | Regulating Pressure Range | 0.005 to 0.9 MPa |
| Source Voltage | 24 VDC 10% | Input Signal | Current type 4 to 20 mA DC |
| Monitor Output | Analog output 4 to 20 mA DC (sink type) | Port Thread Type | G |
| Port Size | 3/8 | Accessory (Bracket) | Without bracket |
| Cable Connector Type | Without cable connector | Pressure Display Unit | bar |
| Option | X60 (made-to-order / customer-made specification) | Sensitivity | 0.2 kPa (100 kPa specification) |
| Linearity | 1% or less (F.S.) | Hysteresis | 0.5% or less (F.S.) |
Equivalents & Cross-Reference
Cross-references are functional equivalents provided for guidance only. Verify port size, flow, and pressure rating before substituting.
