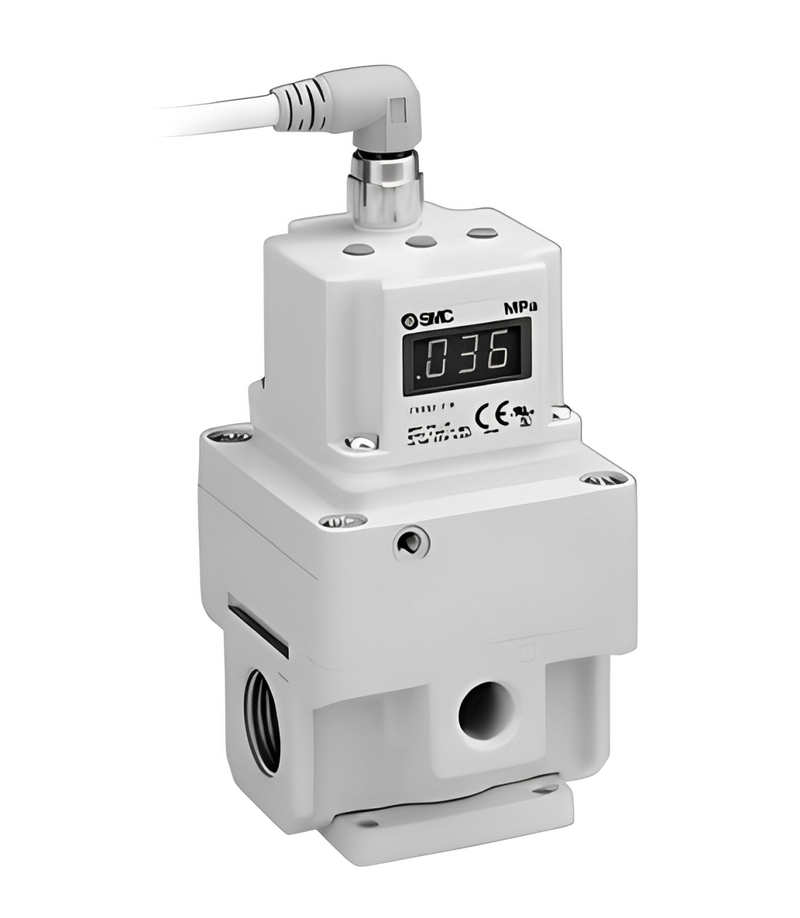

SMC ITV3050044N (ITV3050-044N) - Electro-pneumatic Regulator, Rc 1/2 Port, 4 to 20 mA Input Signal

Name: SMC ITV3050044N (ITV3050-044N) - Electro-pneumatic Regulator, Rc 1/2 Port, 4 to 20 mA Input Signal
Brand: SMC
SKU: ITV3050044N
Price: 1757.00 AED
Availability: BackOrder

Brand: SMC|Part No: ITV3050044N

AED 1,757.00

Quantity

Add to Quote

SMC ITV3050044N Electro-pneumatic Regulator — Rc 1/2 port with MPa pressure display, standard non made-to-order build. 3000 type body, 0.005 to 0.9 MPa regulating pressure range, 24 VDC power supply, 4 to 20 mA DC current input signal (sink type), 4 to 20 mA DC analog monitor output (sink type), Rc 1/2 port, MPa pressure display unit, without bracket, without cable connector.

MPN: ITV3050-044N · SKU: ITV3050044N

ITV3050-044N Applications

The Rc 1/2 port and MPa pressure display make the SMC ITV3050044N the standard-build choice for machines plumbed to Rc taper threads and commissioned in MPa. It is used in automotive, semiconductor, packaging and general factory automation lines where air pressure must track an electrical setpoint steplessly. It is suited for tension control on web and film lines, welding gun force control, and paint and adhesive dispensing pressure control. Its large 3000-body flow capacity holds setpoint under high air demand, while the 4 to 20 mA current loop resists electrical noise over long cable runs.

ITV3050-044N Specifications

Brand	SMC	Manufacturer Part No.	ITV3050-044N
Product Type	Electro-pneumatic Regulator	Series	ITV3000
Type	3000 type	Regulating Pressure Range	0.005 to 0.9 MPa
Power Supply Voltage	24 VDC	Input Signal	Current type 4 to 20 mA DC (sink type)
Monitor Output	Analog output 4 to 20 mA DC (sink type)	Thread Type	Rc
Port Size	1/2	Bracket	Without bracket
Cable Connector	Without cable connector	Pressure Display Unit	MPa
Made To Order	Standard	CE-compliant	Standard type
Sensitivity	0.2 kPa (100 kPa specification)	Linearity	1% or less (F.S.)
Hysteresis	0.5% or less (F.S.)
