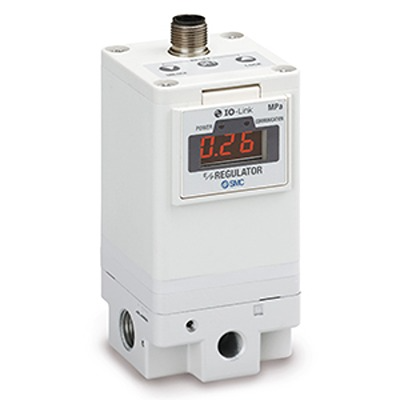

SMC ITV305003F4BN2X15 (ITV3050-03F4BN2-X15) - Electro-Pneumatic Regulator, 0.005-0.9 MPa, 4-20 mA output

SMC ITV305003F4BN2X15 Electro-Pneumatic Regulator — 0.005-0.9 MPa range, 4-20 mA analog output, G3/8 port, X15 special. ITV3000 series electro-pneumatic regulator, 0.9 MPa pressure-range type with -X15 special specification. Set pressure range 0.005 to 0.9 MPa. Max. supply pressure 1.0 MPa. Analog monitor output 4 to 20 mADC (sink type). Power supply 24 VDC +/-10%, current consumption 0.12 A or less. Linearity +/-1% F.S., hysteresis 0.5% F.S. or less, repeatability +/-0.5% F.S. G3/8 port, G thread. Enclosure IP65. Approx. 645 g (without brackets). Air fluid, ambient/fluid temp 0 to 50 C.

MPN: ITV3050-03F4BN2-X15 · SKU: ITV305003F4BN2X15

ITV3050-03F4BN2-X15 Applications

High-flow ITV3000 electro-pneumatic regulator built to an -X15 special specification and offering a 4-20 mA analog monitor output for closed-loop feedback into a controller. It regulates air pressure steplessly across 0.005-0.9 MPa for demanding actuator, tensioning and process applications. The G3/8 port and IP65 enclosure make it suited to automated machinery, semiconductor and coating equipment where precise, repeatable pressure control with live current-loop monitoring is required.

ITV3050-03F4BN2-X15 Specifications
