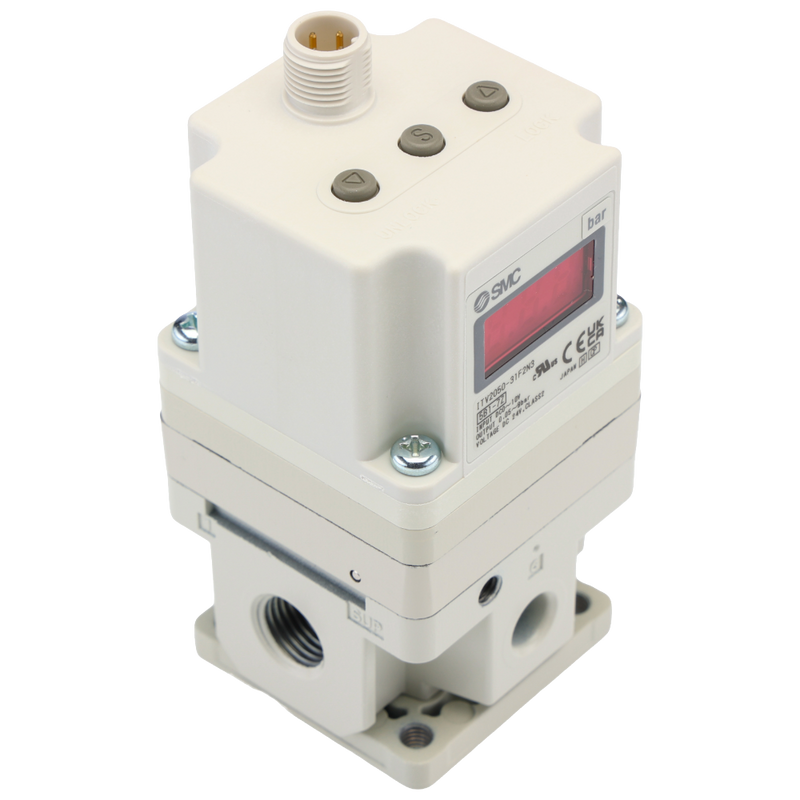

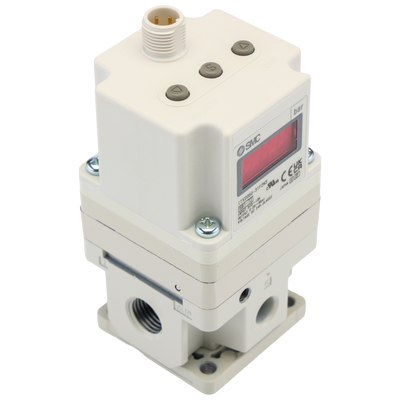

SMC ITV2050ILF2CN3 (ITV2050-ILF2CN3) - Electro-Pneumatic Regulator, 0.005-0.9 MPa, IO-Link communication

SMC ITV2050ILF2CN3 Electro-Pneumatic Regulator — 0.005-0.9 MPa range, IO-Link communication, G1/4 port. ITV2000 series electro-pneumatic regulator with IO-Link (IL) communication interface. Set pressure range 0.005 to 0.9 MPa. Max. supply pressure 1.0 MPa. Power supply 24 VDC +/-10%. Linearity +/-1% F.S., hysteresis 0.5% F.S. or less, repeatability +/-0.5% F.S. G1/4 port, G thread. Enclosure IP65. Air fluid, ambient/fluid temp 0 to 50 C. Approx. 350 g.

MPN: ITV2050-ILF2CN3 · SKU: ITV2050ILF2CN3

ITV2050-ILF2CN3 Applications

IO-Link enabled electro-pneumatic regulator for smart factory setups where pressure setpoints and monitoring data travel digitally over an IO-Link master, eliminating analog wiring. Suited to Industry 4.0 cells, test rigs and automated assembly lines needing remote setpoint changes, diagnostics and traceability. Delivers stepless, low-hysteresis air pressure control from 0.005 to 0.9 MPa with an integrated LED display, in a compact IP65 body for demanding automation environments.

ITV2050-ILF2CN3 Specifications
