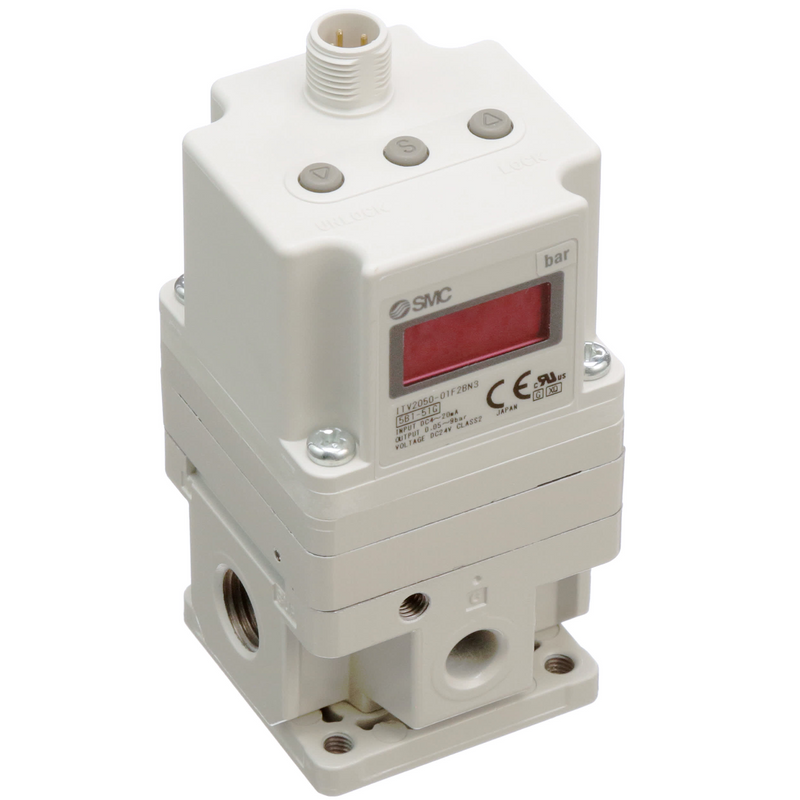

SMC ITV205001F2BN3 (ITV2050-01F2BN3) - Electro-Pneumatic Regulator, 0.005-0.9 MPa, 4-20 mA input

SMC ITV205001F2BN3 Electro-Pneumatic Regulator — 0.005-0.9 MPa range, 4-20 mA input, G1/4 port. ITV2000 series electro-pneumatic regulator. Set pressure range 0.005 to 0.9 MPa. Max. supply pressure 1.0 MPa. Input signal 4 to 20 mADC (current type, sink). Analog monitor output 1 to 5 VDC. Power supply 24 VDC +/-10%, current consumption 0.12 A or less. Linearity +/-1% F.S., hysteresis 0.5% F.S. or less, repeatability +/-0.5% F.S. G1/4 port, G thread. Enclosure IP65. Approx. 350 g. Air fluid, ambient/fluid temp 0 to 50 C.

MPN: ITV2050-01F2BN3 · SKU: ITV205001F2BN3

ITV2050-01F2BN3 Applications

Used to control air pressure steplessly in proportion to a 4-20 mA electrical signal, ideal for tension control, air bearings, painting, welding and clamping where a remote analog setpoint must drive precise pneumatic output. The bright LED display shows real-time output pressure while the 1-5 VDC monitor output feeds pressure data back to a PLC. IP65 construction suits factory automation and semiconductor equipment requiring repeatable, low-hysteresis regulation.

ITV2050-01F2BN3 Specifications
