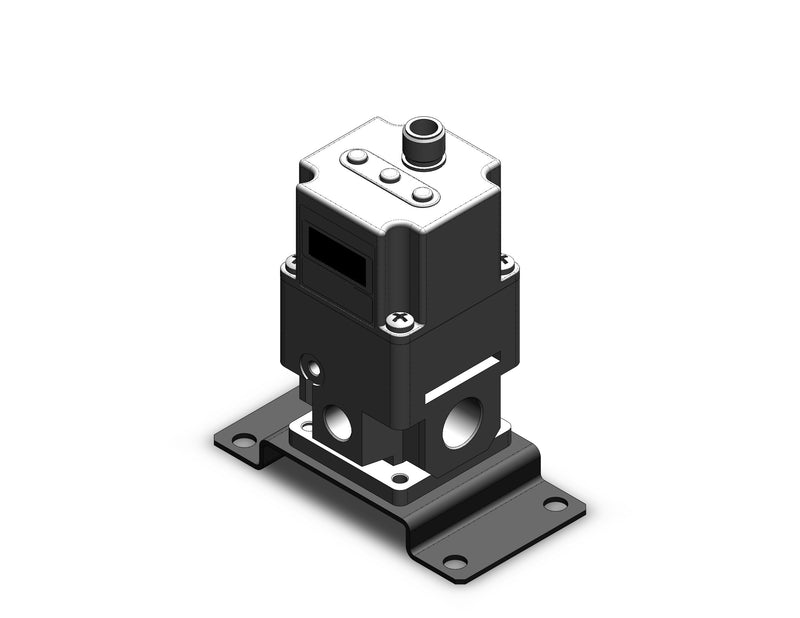

SMC ITV203031F3BN (ITV2030-31F3BN) - Electro-Pneumatic Regulator, 0.005 to 0.5 MPa, G3/8 port

SMC ITV203031F3BN Electro-Pneumatic Regulator — Mid-size 2000 type, 0.005 to 0.5 MPa, G3/8 port. Mid-size ITV2000 type electro-pneumatic regulator for stepless control of air pressure proportional to an electrical signal. Set pressure range 0.005 to 0.5 MPa. Port 3 = 3/8; F = G thread; B = flat bracket. Output N = analog monitor output. Power supply 24 VDC +/-10%; current consumption 0.12 A or less. Linearity +/-1% F.S.; hysteresis 0.5% F.S.; repeatability +/-0.5% F.S. Enclosure IP65 equivalent. Max supply pressure 1.0 MPa.

MPN: ITV2030-31F3BN · SKU: ITV203031F3BN

ITV2030-31F3BN Applications

The ITV2030-31F3BN is a mid-size electro-pneumatic regulator that steplessly controls output air pressure from 0.005 to 0.5 MPa proportional to an electrical signal. Its larger 2000-type body and 3/8 G port deliver higher flow than the 1000 series, suiting proportional pressure control on larger cylinders, air bearings, tension systems and test equipment. Supplied with a flat bracket and analog monitor output for closed-loop feedback and easy panel mounting.

ITV2030-31F3BN Specifications
