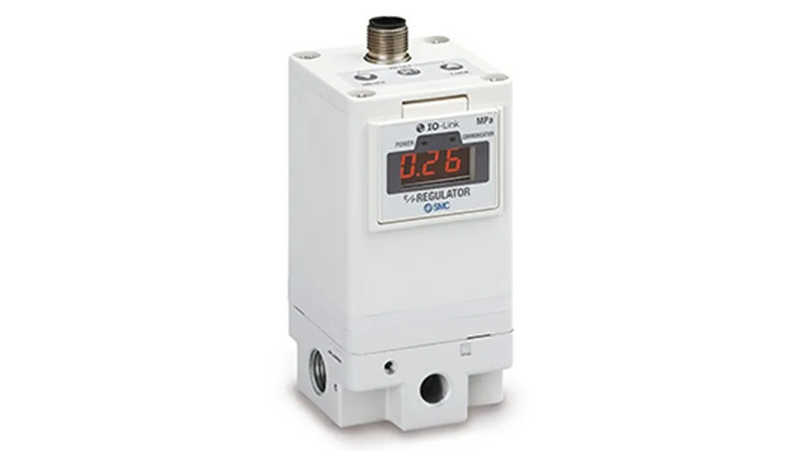

SMC ITV105001F1N (ITV1050-01F1N) - Electro-Pneumatic Regulator, 0.005 to 0.9 MPa, G1/8 port

SMC ITV105001F1N Electro-Pneumatic Regulator — Compact 1000 type, 0.005 to 0.9 MPa, G1/8 port. Compact ITV1000 type electro-pneumatic regulator for stepless control of air pressure proportional to an electrical signal. Pressure range code 5 = 0.9 MPa; set pressure range 0.005 to 0.9 MPa. Port 01 = 1/8; F = G thread. Output N = analog monitor output. Power supply 24 VDC +/-10%; current consumption 0.12 A or less. Linearity +/-1% F.S.; hysteresis 0.5% F.S.; repeatability +/-0.5% F.S. Enclosure IP65 equivalent. Max supply pressure 1.0 MPa.

MPN: ITV1050-01F1N · SKU: ITV105001F1N

ITV1050-01F1N Applications

The ITV1050-01F1N is a compact electro-pneumatic regulator that steplessly controls output air pressure from 0.005 to 0.9 MPa proportional to an electrical signal, offering a higher pressure range than the 0.5 MPa models. With a 1/8 G port and analog monitor output, it suits higher-pressure proportional control in clamping, air bearings, dispensing and test rigs. The compact 1000-type body provides precise, repeatable regulation where space is limited.

ITV1050-01F1N Specifications
