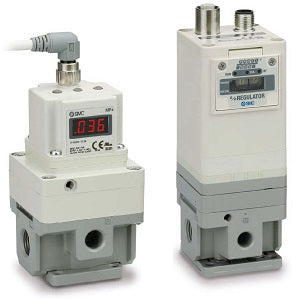

SMC ITV105001F1BN3X158 (ITV1050-01F1BN3-X158) - Electro-Pneumatic Regulator, G1/8 Port, 4-20 mA Current Input

Name: SMC ITV105001F1BN3X158 (ITV1050-01F1BN3-X158) - Electro-Pneumatic Regulator, G1/8 Port, 4-20 mA Current Input
Brand: SMC
SKU: ITV105001F1BN3X158
Price: 1590.00 AED
Availability: BackOrder

Brand: SMC|Part No: ITV105001F1BN3X158

AED 1,590.00

Quantity

Add to Quote

SMC ITV105001F1BN3X158 Electro-Pneumatic Regulator — X158 made-to-order build with 4 to 20 mA current input signal, G1/8 port and bar pressure display. 0.005 to 0.9 MPa set pressure range, 4 to 20 mA DC current input signal, 1 to 5 VDC analog monitor output, G1/8 port, flat bracket, 24 VDC, bar display, IP65.

MPN: ITV1050-01F1BN3-X158 · SKU: ITV105001F1BN3X158

ITV1050-01F1BN3-X158 Applications

The X158 made-to-order build with a 4 to 20 mA current input, G1/8 port and bar display distinguishes the SMC ITV105001F1BN3X158 from its voltage-input ITV1050 siblings, and the current loop is the reason to choose it: it shrugs off voltage drop and electrical noise over long cable runs. It is used in web tension control, paint and adhesive dispensing, test rigs and semiconductor tooling. It is suited for stepless remote pressure setting, recipe-driven pressure changes, and force control on small pneumatic actuators. The 1 to 5 VDC monitor output closes the loop back to the controller, and the flat bracket allows direct panel mounting.

ITV1050-01F1BN3-X158 Specifications

Brand	SMC	Manufacturer Part No.	ITV1050-01F1BN3-X158
Product Type	Electro-Pneumatic Regulator (customer-made / made-to-order)	Series	ITV1000 (ITV1050, 1000 body type)
Set Pressure Range	0.005 to 0.9 MPa	Minimum Supply Pressure	Set pressure + 0.1 MPa
Maximum Supply Pressure	1.0 MPa	Input Signal	Current type, 4 to 20 mA DC (input impedance 250 Ohm or less)
Monitor Output	Analog output, 1 to 5 VDC	Power Supply	24 VDC +/-10%
Current Consumption	0.12 A or less	Port Size	1/8, G (parallel) thread
Bracket	Flat bracket	Cable Connector	Without cable connector
Pressure Display Unit	bar (minimum display unit 0.01)	Linearity	+/-1% F.S. or less
Hysteresis	0.5% F.S. or less	Repeatability	+/-0.5% F.S. or less
Sensitivity	0.2% F.S. or less	Temperature Characteristics	+/-0.12% F.S./degC or less
Output Pressure Display Accuracy	+/-2% F.S. +/-1 digit	Enclosure	IP65
Ambient/Fluid Temperature	0 to 50 degC (no condensation)	Weight	Approx. 250 g (1000 body type, without options)
Part Number Decode	ITV = electro-pneumatic regulator; 1 = 1000 type; 5 = 0.005 to 0.9 MPa; 0 = 24 VDC; 0 = current input 4 to 20 mA; 1 = analog monitor output 1 to 5 VDC; F = G thread; 1 = 1/8 port; B = flat bracket; N = without cable connector; 3 = bar display; X158 = made-to-order option (no published SMC plain-language decode found)
