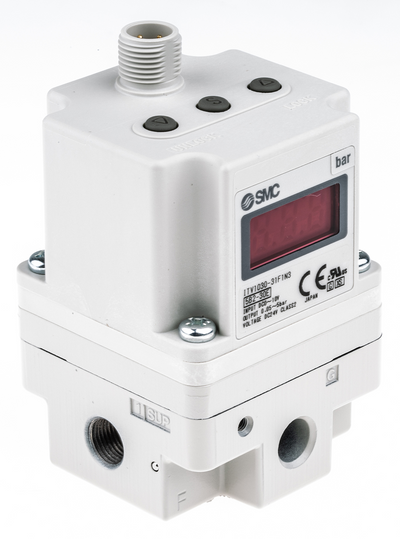

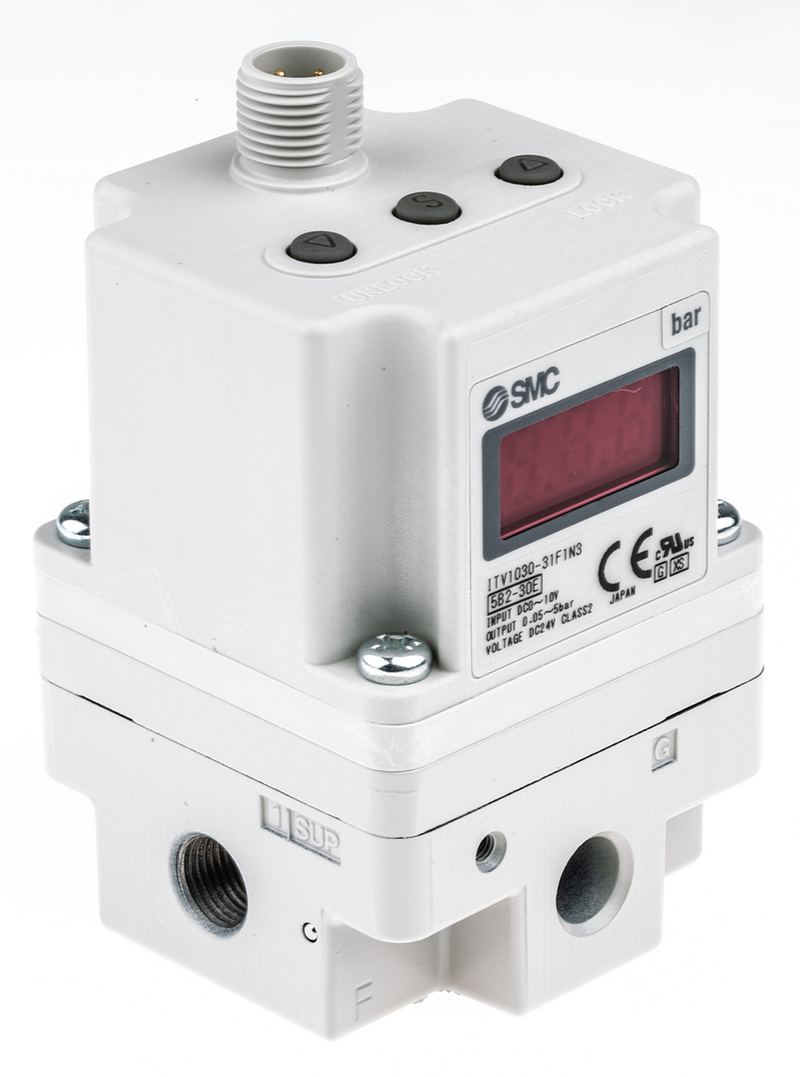

SMC ITV1030312CN3 (ITV1030-312CN3) - Electro-Pneumatic Regulator, 0 to 10 VDC Input, 1/4 Rc Port
SMC ITV1030312CN3 Electro-Pneumatic Regulator — 0.5 MPa range with L-bracket and bar pressure display. ITV1000 type, 0.5 MPa pressure range, 24 VDC power supply, 0 to 10 VDC voltage input signal, analog 1 to 5 VDC monitor output, Rc 1/4 port, L-bracket, bar display unit.
MPN: ITV1030-312CN3 · SKU: ITV1030312CN3
ITV1030-312CN3 Applications
The SMC ITV1030312CN3 is used where a PLC or analog controller must set air pressure electronically rather than by hand. It is suited to tension control on web and wire lines, force control on pressing and clamping stations, and paint or adhesive dispensing where pressure must track a recipe. Supplied with an L-bracket for panel or frame mounting and a bar-scaled display, it excels because its closed-loop control holds the commanded pressure against flow and supply disturbances, and the 1 to 5 VDC monitor output lets the controller verify the delivered pressure.
ITV1030-312CN3 Specifications
| Brand | SMC | Manufacturer Part No. | ITV1030-312CN3 |
| Product Type | Electro-Pneumatic Regulator | Series | ITV1000/2000/3000 Series Electro-pneumatic Regulator |
| Type | 1 - 1000 type | Pressure Range | 3 - 0.5 MPa |
| Power Supply Voltage | 0 - 24 VDC | Input Signal | 3 - Voltage Type 0 To 10 VDC |
| Monitor Output | 1 - Analog Output 1 To 5 VDC | Thread Type | Rc |
| Port Size | 2 - 1/4 | Bracket | C - L-Bracket |
| Cable Connector | N - Without Cable Connector | Pressure Display Unit | 3 - bar |
| Made To Order | Standard | CE-compliant | Standard Type |
| Source | SMC WEB Catalog part number ITV1030-312CN3 |
