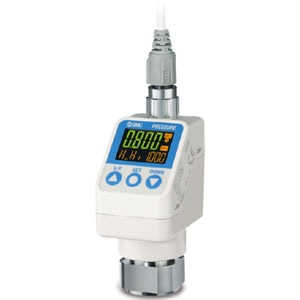

SMC ISE70F02AB (ISE70-F02-A-B) - Digital Pressure Switch, 0 to 1 MPa, G1/4 port

SMC ISE70F02AB Digital Pressure Switch — High-precision 3-screen display, 0 to 1 MPa, G1/4 port. High-precision 2-color (red/green) 3-screen digital pressure switch. Rated pressure range 0 to 1 MPa; pressure display range -0.1 to 1 MPa; withstand pressure 1.5 MPa; display resolution 0.01 MPa. Piping port F02 = G1/4 (ISO 1179-1). Display accuracy 2% F.S. +/-1 digit; repeatability +/-0.5% F.S. NPN/PNP open collector switch output. Power supply 12 to 24 VDC +/-10%; current consumption 55 mA or less. Enclosure IP67. Applicable fluids: air, non-corrosive gas, non-flammable gas.

MPN: ISE70-F02-A-B · SKU: ISE70F02AB

ISE70-F02-A-B Applications

The ISE70-F02-A-B is a high-precision digital pressure switch for monitoring positive air and non-corrosive gas pressure up to 1 MPa in factory automation. Its 2-color 3-screen display shows instantaneous pressure while set points switch the NPN/PNP open collector outputs. Rated to IP67, it suits pneumatic clamping, gripping, blow-off and air-supply lines where a rugged metal-housed switch with clear angled readout is needed. The G1/4 (ISO 1179) port simplifies mounting on manifolds and regulators.

ISE70-F02-A-B Specifications
