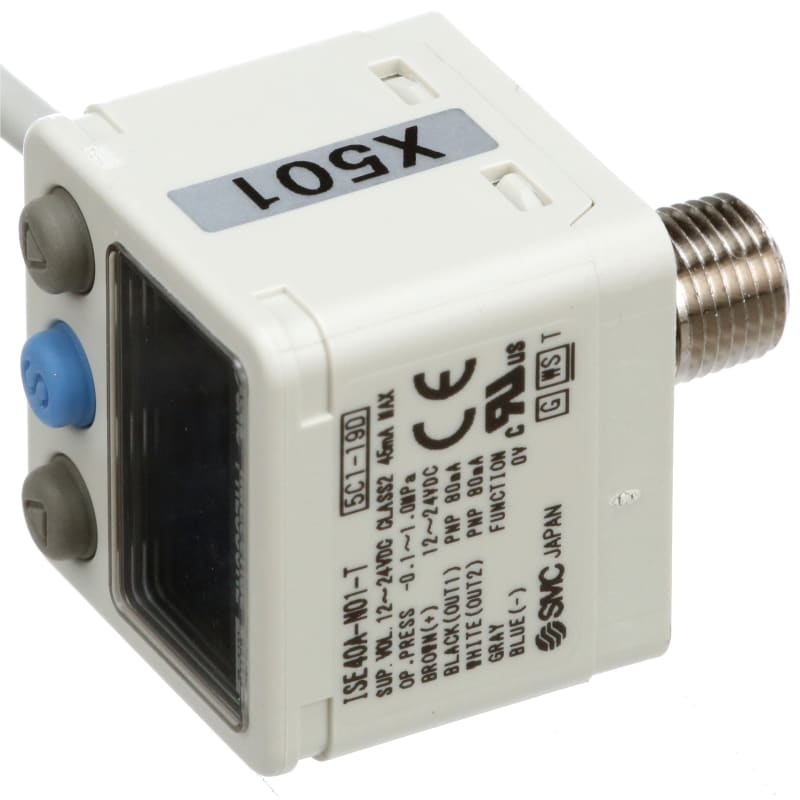

SMC ISE40A01TX501 (ISE40A-01-T-X501) - 2-Colour Display High-Precision Digital Pressure Switch, R1/8 Port, X501 3 m Lead Wire
SMC ISE40A01TX501 2-Colour Display High-Precision Digital Pressure Switch — X501 made-to-order 3 m lead wire (in place of the standard 2 m) with PNP 2-output and analog voltage. -0.100 to 1.000 MPa rated pressure range, PNP open collector 2 outputs, 1 to 5 V analog voltage output, R1/8 port with M5 female thread, 24 VDC, 2-colour LCD, IP65.
MPN: ISE40A-01-T-X501 · SKU: ISE40A01TX501
ISE40A-01-T-X501 Applications
The X501 made-to-order 3 m lead wire is what sets the SMC ISE40A01TX501 apart from the standard 2 m ISE40A, letting the switch mount at the manifold while the cable still reaches a distant control cabinet without a junction box. It is used in automotive assembly, electronics handling and general factory automation to monitor positive air pressure. It is suited for vacuum-cup and gripper confirmation, supply-pressure alarms, and analog pressure logging to a PLC. The 2-colour red/green display flags in-range versus out-of-range at a glance from across the machine, and the copy function clones settings to up to ten units, cutting commissioning time on multi-switch lines.
ISE40A-01-T-X501 Specifications
| Brand | SMC | Manufacturer Part No. | ISE40A-01-T-X501 |
| Product Type | 2-Colour Display High-Precision Digital Pressure Switch | Series | ISE40A (positive pressure) |
| Rated Pressure Range | -0.100 to 1.000 MPa | Display/Set Pressure Range | -0.105 to 1.050 MPa |
| Proof Pressure | 1.5 MPa | Minimum Display Unit | 0.001 MPa |
| Applicable Fluid | Air, non-corrosive gas, non-flammable gas | Port Size | R1/8 (with M5 female thread) |
| Switch Output | PNP open collector, 2 outputs, max. load current 80 mA, max. applied voltage 28 V | Analog Output | 1 to 5 V +/-2.5% F.S., linearity +/-1% F.S., output impedance approx. 1 kOhm |
| Supply Voltage | 12 to 24 VDC +/-10%, with polarity protection | Current Consumption | 45 mA or less |
| Repeatability | +/-0.2% F.S. +/-1 digit | Response Time | 2.5 ms (anti-chattering 20/100/500/1000/2000 ms) |
| Display | 3-1/2 digit, 7-segment, 2-colour LCD (red/green) | Enclosure | IP65 |
| Operating Temperature | -5 to 50 degC (storage -10 to 60 degC) | Lead Wire | 3 m per made-to-order X501 (standard is 2 m oilproof heavy-duty vinyl cable, 5-core) |
| Weight | Approx. 78 g (standard port-01 build) | Standards | CE, UL, CSA, RoHS |
| Part Number Decode | ISE40A = 2-colour display digital pressure switch, positive pressure; 01 = R1/8 port; T = PNP 2 outputs + analog voltage output; X501 = made-to-order 3 m lead wire | Product Status | Manufacture discontinued by SMC (6/2019); replacement series ISE20B |
