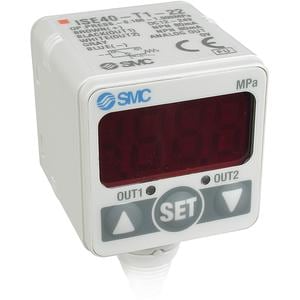

SMC ISE400162L (ISE40-01-62L) - High-Precision Digital Pressure Switch, R1/8 Port, 3 m Lead Wire
SMC ISE400162L High-Precision Digital Pressure Switch — R1/8 port with PNP 2-output plus 1 to 5 V analog output and 3 m lead wire. 0.000 to 1.000 MPa rated pressure range, PNP open collector 2 outputs, 1 to 5 V analog output, R1/8 port with M5 female thread, 12 to 24 VDC supply, IP65 enclosure.
MPN: ISE40-01-62L · SKU: ISE400162L
ISE40-01-62L Applications
The R1/8 port, PNP 2-output plus analog, 3 m lead wire build of the SMC ISE400162L suits panels where the controller sits well away from the sensing point. It is used in factory automation, packaging and machine-tool compressed-air circuits to monitor positive line pressure. It is suited for clamp and gripper confirmation, air-supply drop detection, and closed-loop pressure trending via the 1 to 5 V analog signal into a PLC analog card. The two independent PNP outputs let one switch serve both an alarm threshold and a process interlock, while the 3-1/2 digit LED display gives operators a direct local reading during setup and fault-finding.
ISE40-01-62L Specifications
| Brand | SMC | Manufacturer Part No. | ISE40-01-62L |
| Product Type | High-Precision Digital Pressure Switch | Series | ZSE40/ISE40 (ISE40, positive pressure) |
| Rated Pressure Range | 0.000 to 1.000 MPa | Operating/Set Pressure Range | -0.100 to 1.000 MPa |
| Proof Pressure | 1.5 MPa | Applicable Fluid | Air, non-corrosive gas, non-flammable gas |
| Port Size | R1/8 (with M5 x 0.8 female thread) | Switch Output | PNP open collector, 2 outputs, max. load current 80 mA |
| Analog Output | 1 to 5 V, +/-5% F.S., output impedance approx. 1 kOhm | Supply Voltage | 12 to 24 VDC +/-10% |
| Current Consumption | 55 mA or less | Repeatability | +/-0.2% F.S. +/-1 digit or less |
| Response Time | 2.5 ms (anti-chattering 24/192/768 ms selectable) | Display | 3-1/2 digit LED, sampling 5 times/sec |
| Enclosure | IP65 | Operating Temperature | 0 to 50 degC (storage -10 to 60 degC) |
| Lead Wire | 3 m oil-resistant heavy-duty cord, 5-wire (option L) | Weight | Approx. 60 g |
| Part Number Decode | ISE40 = positive-pressure digital pressure switch; 01 = R1/8 port; 62 = PNP 2 outputs + analog output; L = 3 m lead wire | Product Status | Discontinued by SMC (Mar 2011); replaced by ISE20B |
