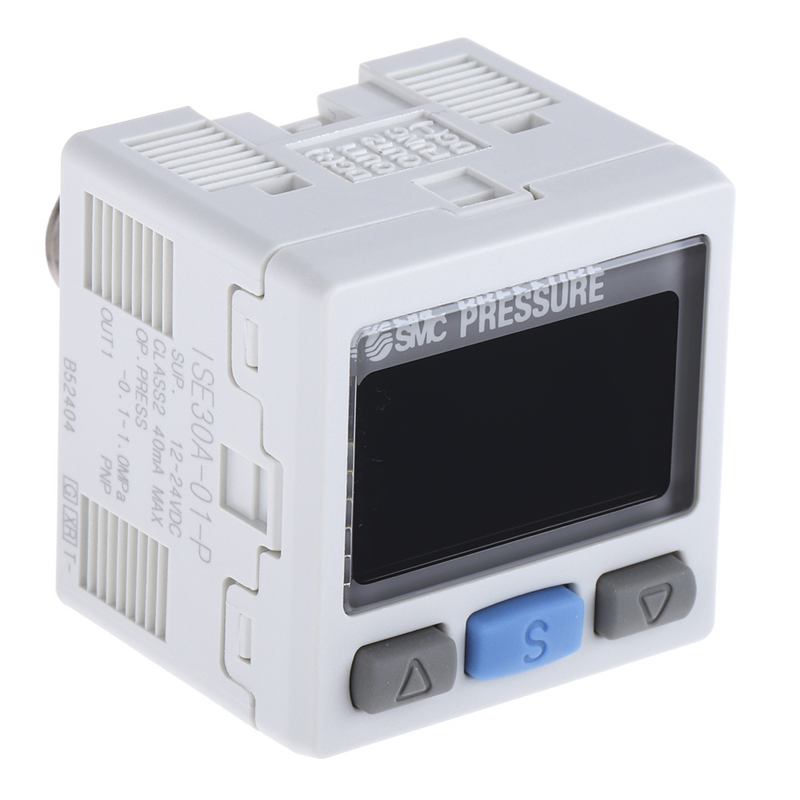

SMC ISE30A01PLA1 (ISE30A-01-P-L-A1) - Digital Pressure Switch, R1/8 Port, PNP 1-Output Switch

SMC ISE30A01PLA1 Digital Pressure Switch — 2-color display, PNP 1-output, R1/8 port, with lead wire and Bracket A. ISE30A 2-color display high-precision digital pressure switch for positive pressure, rated range -0.100 to 1.000 MPa (set range -0.105 to 1.050 MPa). Piping 01: R1/8 (M5 female threaded). Output P: PNP open collector 1 output. Option 1 L: lead wire with connector (2 m). Option 2 A1: Bracket A (ZS-38-A1). 12 to 24 VDC, current consumption 40 mA or less, response time 2.5 ms or less (anti-chattering 20 to 2000 ms), display accuracy +/-2% F.S. +/-1 digit, IP40 enclosure. 3.5-digit 7-segment 2-color LCD (Red/Green).

MPN: ISE30A-01-P-L-A1 · SKU: ISE30A01PLA1

ISE30A-01-P-L-A1 Applications

The ISE30A-01-P-L-A1 monitors positive pressure from -0.1 to 1 MPa with a single PNP switch output, shipped with a 2 m lead wire and Bracket A for immediate panel or surface mounting. Its 2-color red/green LCD changes color with output state for at-a-glance status during clamp confirmation, blow-off checks, and pressure alarms. The R1/8 port fits manifolds; copy, auto-preset, and key-lock functions ease multi-unit setup in pneumatic automation.

ISE30A-01-P-L-A1 Specifications
