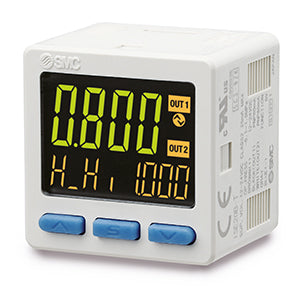

SMC ISE20PN01 (ISE20-P-N01) - Digital Pressure Switch, PNP Output, NPT1/8 Port

SMC ISE20PN01 Digital Pressure Switch — PNP output with NPT1/8 port (versus R1/8). 3-screen, 3-colour display high-precision digital pressure switch for positive pressure. Rated pressure range -0.1 to 1 MPa. PNP open collector 1 output. NPT1/8 threaded port. Unit switching function. Delay time 1.5 ms or less. Simple 3-step setting. IP40. Supplied without lead wire.

MPN: ISE20-P-N01 · SKU: ISE20PN01

ISE20-P-N01 Applications

The ISE20-P-N01 is the NPT-port version of the ISE20 PNP pressure switch, matching North American NPT1/8 piping while keeping the same -0.1 to 1 MPa range and 1.5 ms response. Its PNP open-collector output interfaces with PLC inputs, and the 3-screen, 3-colour display shows value, set point and channel together. Use it for pneumatic clamping, gripping, vacuum-assist and blow-off monitoring on machines built to NPT threading standards.

ISE20-P-N01 Specifications
