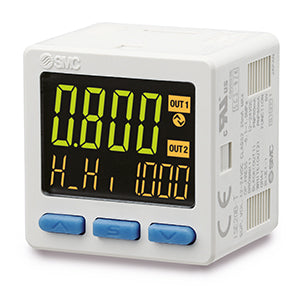

SMC ISE20P01LB (ISE20-P-01-LB) - Digital Pressure Switch, PNP Output, R1/8 Port with Panel Mount Adapter

SMC ISE20P01LB Digital Pressure Switch — PNP output, R1/8 port, with 2 m lead wire and panel mount adapter. 3-screen, 3-colour display high-precision digital pressure switch for positive pressure. Rated pressure range -0.1 to 1 MPa. PNP open collector 1 output. R1/8 port. Supplied with lead wire and connector (2 m) plus panel mount adapter. Unit switching function. Delay time 1.5 ms or less. IP40..

MPN: ISE20-P-01-LB · SKU: ISE20P01LB

ISE20-P-01-LB Applications

The ISE20-P-01-LB combines the ISE20 PNP pressure switch with a 2 m lead-wire connector and a panel mount adapter, letting the unit be front-mounted flush in an operator panel or enclosure door for easy readout and adjustment. It measures positive pressure from -0.1 to 1 MPa with a 1.5 ms response and a PNP open-collector output. Ideal for machine consoles and test rigs needing an at-hand 3-screen display over pneumatic clamping and blow-off circuits.

ISE20-P-01-LB Specifications
