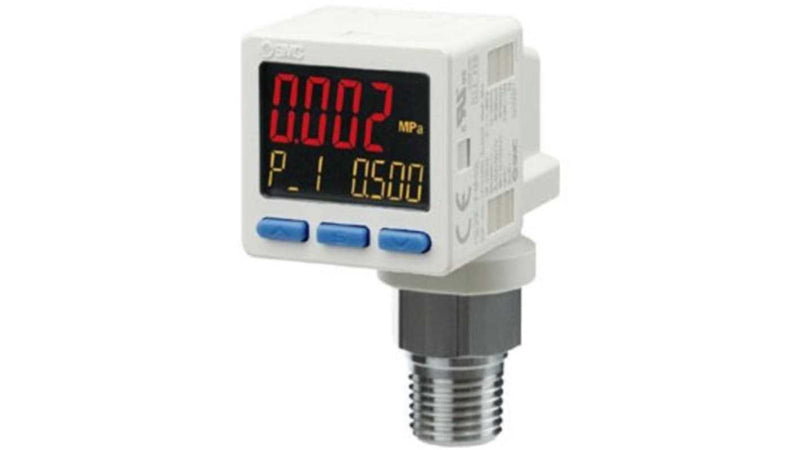

SMC ISE20P01 (ISE20-P-01) - Digital Pressure Switch, PNP Output, R1/8 Port

SMC ISE20P01 Digital Pressure Switch — PNP open collector 1 output with R1/8 port, no lead wire. 3-screen, 3-colour display high-precision digital pressure switch for positive pressure. Rated pressure range -0.1 to 1 MPa. PNP open collector 1 output. Integrated R1/8 fitting with bottom wiring entry. Unit switching function. Response/delay time 1.5 ms or less. Simple 3-step setting and easy screen switching. IP40. Supplied without lead wire.

MPN: ISE20-P-01 · SKU: ISE20P01

ISE20-P-01 Applications

The ISE20-P-01 monitors positive air or gas pressure in pneumatic and vacuum-assist automation. Its PNP open-collector output drives PLC inputs directly, while the 3-screen, 3-colour display shows measured value, set point and channel simultaneously for fast setup. With a 1.5 ms response and -0.1 to 1 MPa range, it suits clamping, gripping, blow-off and leak-detection lines. The integrated R1/8 fitting with bottom wiring entry allows compact panel or manifold mounting.

ISE20-P-01 Specifications
