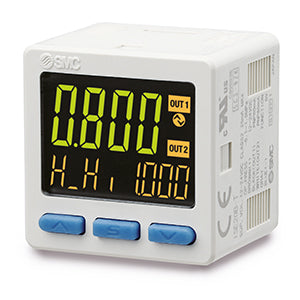

SMC ISE20CTF02W (ISE20C-T-F02-W) - Digital Pressure Switch, G1/4 Port, PNP 2-Output Switch

SMC ISE20CTF02W Digital Pressure Switch — General-fluid PNP 2-output plus analog voltage, G1/4 port, with lead wire. ISE20C 3-screen high-precision digital pressure switch for general fluids (liquids and gases that do not corrode stainless steel 630 and 304), positive pressure rated range -0.100 to 1.000 MPa. Output T: PNP open collector 2 outputs plus analog voltage output. Piping F02: G1/4 (M5 female threaded). Option W: with lead wire with connector, 5-core, waterproof cover. 12 to 24 VDC, current consumption 35 mA or less, IP65 enclosure. Wetted parts stainless steel 630/304..

MPN: ISE20C-T-F02-W · SKU: ISE20CTF02W

ISE20C-T-F02-W Applications

The ISE20C-T-F02-W measures positive pressure of general fluids from -0.1 to 1 MPa, with stainless steel 630/304 wetted parts suited to liquids and gases such as coolant, water, and oil. It provides PNP dual switch outputs plus an analog voltage signal and ships with a lead wire and connector. The G1/4 port and IP65 body suit process and machine-tool applications where standard air switches are unsuitable; the 3-screen display eases commissioning.

ISE20C-T-F02-W Specifications
