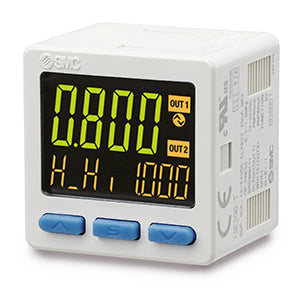

SMC ISE20BTM5 (ISE20B-T-M5) - Digital Pressure Switch, M5 Female Port, PNP 2-Output Switch

SMC ISE20BTM5 Digital Pressure Switch — PNP 2-output plus analog voltage, M5 female port. ISE20B 3-screen high-precision digital pressure switch for positive pressure, rated range -0.100 to 1.000 MPa. Output T: PNP open collector 2 outputs plus analog voltage output. Piping M5: M5 female thread. 12 to 24 VDC, current consumption 35 mA or less, display accuracy +/-2% F.S. +/-1 digit, IP65 enclosure, response time 2.5 ms or less with anti-chattering.

MPN: ISE20B-T-M5 · SKU: ISE20BTM5

ISE20B-T-M5 Applications

The ISE20B-T-M5 monitors positive pressure from -0.1 to 1 MPa through a compact M5 female port, ideal for tight installations on small valves and manifolds. It delivers PNP dual switch outputs plus an analog voltage output for vacuum-pickup verification, clamp confirmation, and supply-pressure alarms. The 3-screen display shows pressure, set value, and units, and the IP65 body with anti-chattering suits demanding pneumatic automation environments.

ISE20B-T-M5 Specifications
