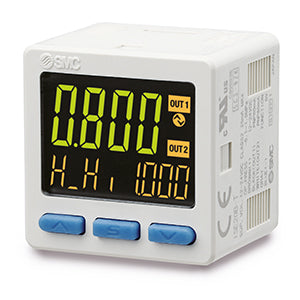

SMC ISE20BT01 (ISE20B-T-01) - Digital Pressure Switch, R1/8 Port, PNP 2-Output Switch

SMC ISE20BT01 Digital Pressure Switch — PNP 2-output plus analog voltage, R1/8 port. ISE20B 3-screen high-precision digital pressure switch for positive pressure, rated range -0.100 to 1.000 MPa. Output T: PNP open collector 2 outputs plus analog voltage output. Piping 01: R1/8. 12 to 24 VDC, current consumption 35 mA or less, display accuracy +/-2% F.S. +/-1 digit, repeatability +/-0.2% F.S. +/-1 digit, IP65 enclosure, response time 2.5 ms or less with anti-chattering.

MPN: ISE20B-T-01 · SKU: ISE20BT01

ISE20B-T-01 Applications

The ISE20B-T-01 monitors positive air or gas pressure from -0.1 to 1 MPa and provides PNP dual switch outputs plus an analog voltage output, matching sinking-input PLCs common in Europe. It suits vacuum-cup pickup verification, clamp and gripper confirmation, and supply-pressure alarms in pneumatic automation. The 3-screen display shows pressure, set point, and units together, and the R1/8 port mounts to manifolds. IP65 rating supports factory-floor use.

ISE20B-T-01 Specifications
